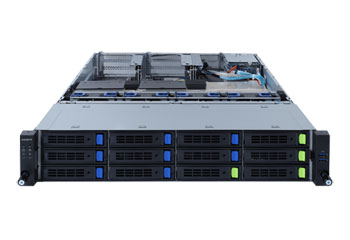

Gigabyte R262-ZA2 2U GPU Server

SKU: AH-GPU214-GA01

Featured Product Image

Key Features:

  • Supports up to 2 dual slot Gen4 GPU cards
  • AMD EPYC™ 7003 series processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16x DIMMs
  • 4x 3.5" Gen4 NVMe/SATA hot-swappable bays
  • 8x 3.5" SATA hot-swappable bays (optional)
  • 2x 2.5" SATA hot-swappable bays on rear side
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 2x 1600W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

AMD EPYC™ 7003 GPU Server System - 2U 14-Bay | Application: AI, AI Training, AI Inference & Networking

Processor

CPU Quantity 1
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads
GPU Support Up to 2 GPU

Memory

Memory Capacity Up to 128GB RDIMM Supported
Up to 128GB LRDIMM Supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed

Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRS2027:
2x PCIe x8 (Gen4 x8) low-profile slots

Riser Card CRS2225 x 2:
2x PCIe x16 (Gen4 x16 or x8) FHFL slots, for GPUs
2x PCIe x8 (Gen4 x0 or x8) FHFL slots
1x PCIe x16 (Gen4 x16) FHHL slot
1x PCIe x16 (Gen3 x16 or x8) FHHL slot, shared with OCP2.0 mezzanine slot

Internal Riser Card CRS101H:
1x PCIe x16 (Gen4 x16) FHHL slot, occupied by CNV3134, 4-port NVMe Card

1x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

1x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS2225
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4
Supports NGFF-2280/22110 cards

Drive Bays

Storage
 Front side:
4x Gen4 NVMe/SATA/SAS hot-swappable bays
8x SATA/SAS hot-swappable trays, enabled by optional SAS Card

Rear side:
2x 2.5" SATA/SAS hot-swappable bays

SAS card is required to enable the drive bays

Default configuration supports:
4x 3.5" Gen4 NVMe/SATA/SAS drives on front side
2x 2.5" SATA/SAS drives on rear side

Input/Output

Internal I/O
 1x M.2 slot
1x USB 3.0 header
1x COM header
1x TPM header
1x OCP 3.0 mezzanine slot
1x OCP 2.0 mezzanine slot
1x Front panel header
1x Backplane board header
1x PMBus connector
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O
 2x USB 3.0
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
Front side - CBP20C5:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022:
SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (16,300rpm), 2-ball

Power

Power Supply 2x 1600W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 28.74" (730mm)
