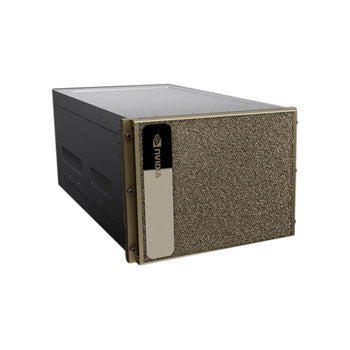

NVIDIA DGXH-G1128+P2CMI36 DGX H200 System
SKU: AH-GPU608-NX06
Description
NVIDIA DGX H200 powers business innovation and optimization. The system is designed to maximize AI throughput, providing enterprises with a highly refined, systemized, and scalable platform to help them achieve breakthroughs in generative AI, natural language processing, recommender systems, data analytics, and much more. DGX H200 delivers the performance needed for enterprises to solve the biggest challenges with AI.
General Information
| Manufacturer | NVIDIA |
| Manufacturer Part # | DGXH-G1128+P2CMI36 |
| Product Line | DGX |
| Product Name | DGX H200 |
| Product Type | Graphics Computing System |
Processor
| Quantity Installed | 2 |
| Manufacturer | Intel |
| Type | Xeon Platinum |
| Model | 8480C |
| Cores | 56 Core (112 Total) |
| Speed | 2.0 GHz |
GPU
| Quantity Installed | 8 |
| GPU Manufacturer | NVIDIA |
| GPU Architecture | Hopper |
| Chipset Model | H200 |
| Processor Cores | 432 Tensor 6912 CUDA |
| Total GPU Memory | 1128 GB (8x H200 141 GB) |
Memory
| Capacity | 2TB |
Storage
| Total Drive Capacity |
OS: 2x 1.92TB M.2 NVMe Internal Storage: 8x 3.84TB U.2 NVMe |
| Type | Solid State Drive |
Network
| Networking |
4x OSFP Port Serving 8x Single-Port NVIDIA ConnectX-7 VPI 2x Dual-Port QSFP112 NVIDIA ConnectX-7 VPI |
Software
| Operating System |
Ubuntu Linux OS |
| Support | Three-Year Business-Standard Hardware and Software Support |
Dimensions
| Form Factor | Rackmount |
| Rack Height | 6U |
| Height | 14" (356.0 mm) |
| Width | 19.0" (482.2 mm) |
| Depth | 35.3" (897.1 mm) max |
| System Weight | 287.6 lbs |
| Packaged Weight | 376 lbs |
