Gigabyte G294-A22-AAP2 2U GPU Server

SKU: AH-GPU208-GX12

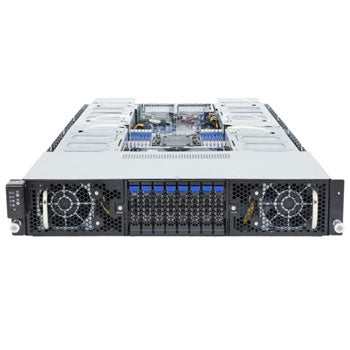

Featured Product Image

Key Features:

  • Supports up to 8x Dual slot Gen5 GPUs
  • Supports 4x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges
  • Single Intel® Xeon® 6900-Series Processors
  • 12-Channel DDR5 RDIMM / MRDIMM, 12x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 8x 2.5" SATA/SAS-4 hot-swap bays
  • 8x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - Intel® Xeon® 6 Processors - 2U UP 8 x PCIe Gen5 GPUs (with PCIe switches)

Processor

CPU Quantity Single processor, TDP up to 500W
CPU Socket Socket BR (LGA 7529)
CPU Manufacturer Intel®
CPU Supported Intel® Xeon® 6 Processors
- Intel® Xeon® 6900-Series Processors
GPU Support Up to 8x PCIe Gen5 GPUs

Memory

Memory Type

DDR5 memory supported
12-Channel memory architecture
MRDIMM supported

MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
Memory Speed RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
Memory Slots

12

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 2x 10Gb/s LAN (1x Intel® X710-AT2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN

Expansion Slots

PCI Express

Riser Card CRCG620 x 2:
- 4x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRCG621 x 2:
- 4x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
- 2x LP x16 (Gen5 x16), from PEX89048

[Note] The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge.

[Note] The system is only validated with a uniform GPU model.
M.2

Internal M.2 (Expansion card - CMTP1A0):
2x M.2 (2280), PCIe Gen4 x4, occupied for SATA

Drive Bays

Storage

Front hot-swap:
8x 2.5" SATA/SAS-4
- (SATA via CRS2810)

SAS card is required to support SAS drives.
RAID Require RAID add-in cards
Onboard VROC key header

Input/Output


Front I/O
 1x Power button with LED
1x ID button with LED
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
2x RJ45 ports
1x MLAN port
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x System status LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
LAN Rear:
2x 10Gb/s LAN (1x Intel® X710-AT2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM

1x TPM header with SPI interface
Optional TPM2.0 kit: CTM012

1x PRoT connector (only enabled on RoT SKU)

Cooling

System Fans 8x 80x80x80mm

Power

Power Supply

Dual 3000W redundant power supplies

The system power supply requires C19 power cord.
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.63" (448mm)
Depth 33.46" (850mm)
Weight Net Weight: 27 kg
Gross Weight: 31 kg
