Gigabyte E163-S30 1U Rackmount Server

SKU: AH-RM102-GX01

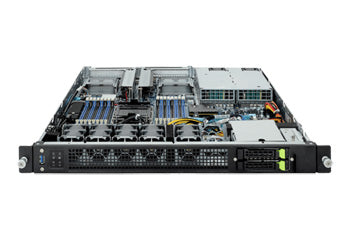

Featured Product Image

Key Features:

  • 4th Gen Intel® Xeon® Scalable Processors
  • Single processor, LGA 4677
  • 8-Channel RDIMM DDR5 per processor, 16x DIMMs
  • 1x 1Gb/s LAN port (Intel® I210-AT)
  • 1x Dedicated management port
  • 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 1x M.2 slot with PCIe Gen3 x4 interface
  • 2x FHHL PCIe Gen5 x16 slots
  • 2x OCP 3.0 Gen5 x16 slots
  • 1+1 800W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Edge Server - 4th Gen Intel® Xeon® - 1U UP 2-Bay Gen4 NVMe/SATA/SAS | Application: Networking & Edge

Processor

CPU Quantity 1
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 4th Generation Xeon® Scalable Processors
Cores Up to 60-cores

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed

Up to 4800 MHz (1DPC), 4400MHz (2DPC)
Memory Slots 16

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Riser Card CRS101O:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU

Riser Card CRS101P:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU

2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function
M.2 1x M.2 slot:
M-key
PCIe Gen3 x4, from PCH
Supports 2280/22110 cards

Drive Bays

Storage
 Front side:
2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
RAID Intel® SATA RAID 0/1

Input/Output

Internal I/O
 1x M.2 slot
1x TPM header
1x VROC connector
2x OCP 3.0 slots
Front I/O
 1x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x Mini-DP
1x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
1x 1Gb/s LAN port (1x Intel® I210-AT)
Supports NCSI function

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 5x 40x40x56mm (30,000rpm)

Power

Power Supply 1+1 800W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 1U
Height 1.71" (43.5mm)
Width 17.24" (438mm)
Depth 20.47" (520mm)
