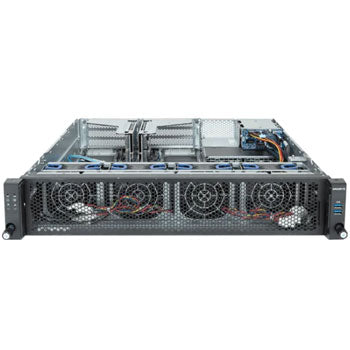

Gigabyte E263-S30-AAV1 2U GPU Server

SKU: AH-GPU202-GX02

Featured Product Image

Key Features:

  • Supports up to 2 x Dual slot Gen5 GPUs
  • Single 5th/4th Gen Intel® Xeon® Scalable Processors
  • Single Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 16x DIMMs
  • Dual ROM Architecture
  • 1x 1Gb/s LAN port via Intel® I210-AT
  • 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 1x M.2 slot with PCIe Gen3 x4 interface
  • 2x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x OCP 3.0 Gen5 x16 slots
  • 1+1 1600W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Edge Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 2 x PCIe Gen5 GPUs Titanium

Processor

CPU Quantity Single processor, TDP up to 350W
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 5th Generation Xeon® Scalable Processors
4th Generation Xeon® Scalable Processors
Xeon® CPU Max Series
GPU Support Up to 2x Dual-Slot Gen5 GPUs

Memory

Memory Type DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory Speed

5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup.
Memory Slots 16

On-board

Chipset Intel® C741
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRS201C:
- 1x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs

Riser Card CRS201D:
- 1x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs

2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function
M.2 1x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards

Drive Bays

Storage
 Rear Side:
2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
RAID Intel® SATA RAID 0/1

Input/Output

Internal I/O 1x TPM header
1x VROC connector
Front I/O
 2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x Mini-DP
1x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
1x 1Gb/s LAN port (1x Intel® I210-AT)
Supports NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (18,300rpm)

Power

Power Supply 1+1 1600W redundant power supplies
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 20.47" (520mm)
