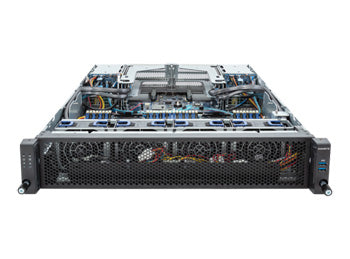

Gigabyte E283-S90 2U Rackmount Server

SKU: AH-RM204-GX01

Featured Product Image

Key Features:

  • 4th Gen Intel® Xeon® Scalable Processors
  • Dual processor, LGA 4677
  • 8-Channel RDIMM DDR5 per processor, 32x DIMMs
  • 2x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1x Dedicated management port
  • 4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 6x FHHL PCIe Gen5 x16 slots
  • 2x OCP 3.0 Gen5 x16 slots
  • Dual 1600W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Edge Server - 4th Gen Intel® Xeon® - 2U UP 4-Bay Gen4 NVMe/SATA/SAS | Application: Networking & Edge

Processor

CPU Quantity 2
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 4th Generation Xeon® Scalable Processors
Cores Up to 60-cores
GPU Support Up to 2x Dual-Slot Gen5 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed

Up to 4800 MHz (1DPC), 4400MHz (2DPC)
Memory Slots 32

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Riser Card CRS101J:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101K:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

Riser Card CRS202G:
2x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0*

*NOTE: Slot_10 would be downgraded to Gen4 if using XCC CPU with 4x UPI

Riser Card CRS202H:
2x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

Drive Bays

Storage
 Rear side:
4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
(2x NVMe from CPU_0, 2x NVMe from CPU_1)

SAS card is required for SAS devices support
RAID Intel® SATA RAID 0/1/10/5

Input/Output

Internal I/O
 1x TPM header
1x VROC connector
2x OCP 3.0 slots
Front I/O
 2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x Mini-DP
2x RJ45
1x MLAN
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1Gb/s LAN ports (1x Intel® I350-AM2)
Support NCSI function

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (18,300rpm)

Power

Power Supply Dual 1600W (240V) redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 24.60" (625mm)
