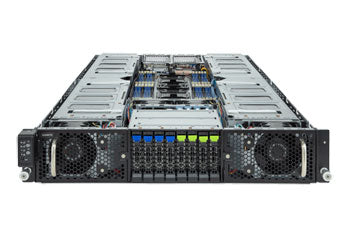

Gigabyte G293-S42 2U GPU Server

SKU: AH-GPU208-GX06

Key Features:

  • Supports up to 8 Dual slot Gen5 GPU cards
  • 4th Gen Intel® Xeon® Scalable Processors
  • 8-Channel RDIMM DDR5, 24 DIMMs
  • 2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
  • 4x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4x 2.5" SATA/SAS hot-swappable bays
  • 8x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x LP PCIe Gen5 x16 slots for add-on cards
  • Dual 3000W (240V) 80 PLUS Titanium redundant power supply

Request a Quote

$0.00

Description

HPC 4th Gen Intel® Xeon® Scalable Server - 2U DP 8-GPU NVMe/SATA/SAS | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel
CPU Supported 4th Generation Xeon® Scalable Processors
Cores Up to 60 cores
GPU Support Up to 8 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
Memory Slots 24

On-board

Chipset Intel® C741 Chipset
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Riser Card CRSG622 x 2:
4x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs

Riser Card CRSG623 x 2:
4x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs

Riser Card CRSG01F x 2:
1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

Drive Bays

Storage
Front side:
4x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4x 2.5" SATA/SAS hot-swappable bays
(2x NVMe from CPU_0, 2x NVMe from CPU_1)
SAS card is required for SAS devices support
RAID Intel® SATA RAID 0/1/10/5

Input/Output

Internal I/O
1x TPM header
1x VROC connector
Front I/O
1x Power button with LED
1x ID button with LED
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
1x Reset button
Rear I/O
2x USB 3.2 Gen1
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
Support NCSI function

1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 80x80x38mm (16,300rpm)

Power

Power Supply Dual 3000W (240V) redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.63" (448mm)
Depth 31.49" (800mm)
Weight Net Weight: 66.13 lbs (30 kg)
Gross Weight: 79.36 lbs (36 kg)
