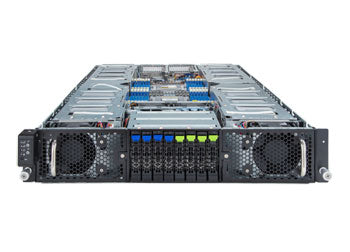

Gigabyte G293-Z42-AAP1 2U GPU Server

SKU: AH-GPU208-GA14

Featured Product Image

Key Features:

  • Supports up to 8x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Broadcom® BCM57416
  • 4x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
  • 4x 2.5" SATA/SAS hot-swap bays
  • 8x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 9005/9004 - 2U DP 8 x PCIe Gen5 GPUs (with PCIe switches)

Processor

CPU Quantity Dual processor, TDP up to 210W
- At 30°C ambient, cTDP up to 240W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9005 Series Processors
EPYC™ 9004 Series Processors
GPU Support Up to 8x Dual slot Gen5 GPUs

Memory

Memory Type DDR5 memory supported
12-Channel memory per processor
Memory Speed AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 24

On-board

Chipset System on Chip
System Management
 ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in ASPEED® AST2600
- 1x VGA port

Expansion Slots

PCI Express

Riser Card CRSG622 x 2:
- 4x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG623 x 2:
- 4x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
- 2x LP x16 (Gen5 x16), from CPU_0

Drive Bays

Storage

Front hot-swap:
4x 2.5" Gen5 NVMe/SATA/SAS
4x 2.5" SATA/SAS
- (NVMe from CPU_1)
- (SATA from CPU_1)

SAS card is required for SAS devices support

Input/Output

Front I/O
 1x Power button with LED
1x ID button with LED
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
2x RJ45 ports
1x MLAN port
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x System status LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear:
2x 10Gb/s LAN (1x Broadcom® BCM57416)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 80x80x38mm (18,300rpm)

Power

Power Supply Dual 3000W redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.63" (448mm)
Depth 31.49" (800mm)
Weight Net Weight: 44.7 kg
Gross Weight: 47 kg
