Gigabyte G294-Z22-AAP2 2U GPU Server

SKU: AH-GPU208-GA11

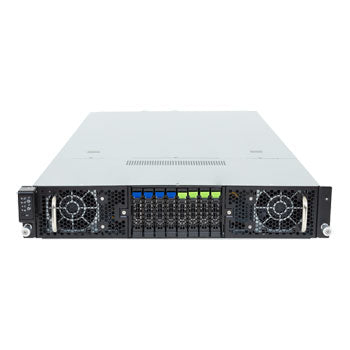

Featured Product Image

Key Features:

  • Supports up to 8x Dual slot Gen5 GPUs
  • Supports 4x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges
  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 12x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Broadcom® BCM57416
  • 4x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4x 2.5" SATA/SAS-4 hot-swap bays
  • 2x M.2 slots with PCIe Gen5 x4 interface
  • 8x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 9005/9004 - 2U UP 8x PCIe Gen5 GPUs (with PCIe switches)

Processor

CPU Quantity Single processor, cTDP up to 400W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
GPU Support Up to 8x GPUs

Memory

Memory Type DDR5 memory supported
12-Channel memory per processor
Memory Speed AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 12x DIMM Slots

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in ASPEED® AST2600
- 1x VGA port

Expansion Slots

PCI Express

Riser Card CRSG620 x 2:
- 4x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG621 x 2:
- 4x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
- 2x LP x16 (Gen5 x16), from CPU
M.2 Internal M.2:
2x M.2 (2280/22110), PCIe Gen5 x4

Drive Bays

Storage
 Front side:
4x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support

Input/Output

Front I/O
 1x Power button with LED
1x ID button with LED
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED

Rear I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
2x RJ45 ports
1x MLAN port
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x System status LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

LAN Rear:
2x 10Gb/s LAN (1x Broadcom® BCM57416)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN

TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 80x80x80mm (16,500rpm)

Power

Power Supply Dual 3000W redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.63" (448mm)
Depth 33.46" (850mm)
