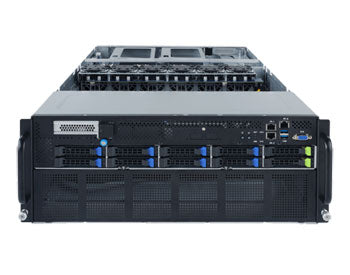

Gigabyte G482-Z54 4U GPU Server

SKU: AH-GPU410-GA01

Featured Product Image

Key Features:

  • Supports up to 8 Gen4 GPGPU cards
  • NVIDIA-Certified system for scalability, functionality, security, and performance
  • AMD EPYC™ 7003 series processors
  • 8-Channel RDIMM DDR4, 32x DIMMs
  • 2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 2x 2.5" NVMe hot-swappable bays
  • 8x 2.5" SATA hot-swappable bays
  • 3x 2200W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

HPC 4U DP 8x Gen4 GPU Server | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads
GPU Support Up to 8 GPU

Memory

Memory Capacity Up to 128GB RDIMM/LRDIMM Supported
Up to 256GB 3DS RDIMM/LRDIMM Supported
Memory Type DDR4 memory supported only
Memory Speed

Up to 3200*/2933 MHz

* Please refer to memory matrix table in manual for more information about memory support frequency
Memory Slots 32

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

4x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs
4x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1x PCIe x16 (Gen4 x16) FHFL slot on rear side, from CPU_1*

*SAS cards with internal cables not supported due to cable routing limitation

Drive Bays

Storage

Front side:
2x 2.5" NVMe hot-swappable bays, from CPU_0
8x 2.5" SATA hot-swappable bays, from CPU_0

SAS devices not supported

Input/Output

Internal I/O
 1x TPM header
1x Front panel header
Front I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
Rear I/O
 N/A
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
LAN Front side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported

1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 12x 60x60x38mm (21,700rpm)

Power

Power Supply 3x 2200W redundant power supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Rackmount
Rack Height 4U
Height 6.92" (176mm)
Width 17.63" (448mm)
Depth 34.64" (880mm)
Weight Net Weight: 66.13 lbs (30 kg)
Gross Weight: 79.36 lbs (36 kg)
