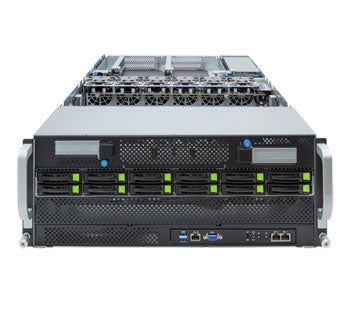

Gigabyte G493-ZB2 4U GPU Server

SKU: AH-GPU412-GA03

Featured Product Image

Key Features:

  • Supports up to 8 Dual slot Gen5 GPU cards
  • AMD EPYC™ 9004 series processors
  • Dual processor, 5nm technology
  • 12-Channel RDIMM DDR5, 48x DIMMs
  • 12x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 2x M.2 slots with PCIe Gen3 x4 interface
  • 8x FHFL PCIe Gen5 x16 slots for GPUs
  • 4x FHFL PCIe Gen5 x16 slots
  • 2x LP PCIe Gen5 x16 slots on front side
  • 3+1 3000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI AMD EPYC™ 9004 - 4U DP 8x PCIe Gen5 GPUs | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9004 series processors
Cores Up to 128-cores, 256 threads
GPU Support Up to 8 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
Memory Slots 48

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

4x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
4x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

2x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0
2x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1

1x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_0
1x PCIe x16 (Gen5 x16) low-profile slot on front side, from CPU_1
M.2 1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_0
Supports 2280/22110 cards

1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_1
Supports 2280/22110 cards

Drive Bays

Storage

Front side:
12x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
(2x NVMe from CPU_0, 2x NVMe from CPU_1, 4x NVMe from PEX89144_0, 4x NVMe from PEX89144_1)

SAS card is required for SAS devices support

Input/Output


Internal I/O
 2x M.2 slots
1x TPM header
Front I/O
 2x USB 3.2 Gen1
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
Rear I/O
 N/A
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Front side:
2x 1Gb/s BASE-T LAN ports (1x Intel® I350-AM2)
NCSI function supported

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 6x 60x60x38mm (23,000rpm)

Power

Power Supply 3+1 3000W (240V) redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 4U
Height 6.92" (176mm)
Width 17.63" (448mm)
Depth 34.64" (880mm)
