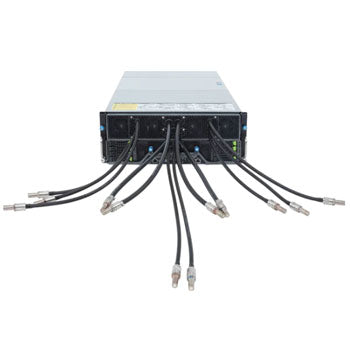

Gigabyte G4L3-ZD1-LAX5 4U GPU Server

SKU: AH-GPU408-GA11

HPC/AI Server - AMD EPYC™ 9005/9004 - 4U DP NVIDIA HGX™ B200 DLC

Processor

CPU Quantity	Dual processor, cTDP up to 500W
CPU Socket	LGA 6096 (Socket SP5)
CPU Manufacturer	AMD^®
CPU Supported	EPYC™ 9005 Series Processors EPYC™ 9004 Series Processors
GPU Support	Liquid-cooled NVIDIA HGX™ B200 with 8x SXM GPUs

Memory Type	DDR5 memory supported 12-Channel memory per processor
Memory Speed	AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Memory Slots	24

Chipset	System on Chip
System Management	ASPEED^® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
Video	Integrated in Aspeed® AST2600 - 1x VGA port

PCI Express	PCIe Bridge Board - CBG76: - 8x FHHL x16 (Gen5 x16), from PEX89104 PCIe Bridge Board - CPBG045 x 2: - 4x FHHL x16 (Gen5 x16), from PEX89048
M.2	Internal M.2: 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0

Storage

Front hot-swap:
8x 2.5" Gen5 NVMe
- (NVMe from PEX89104)

Front I/O	I/O board - CFPG540: 2x USB 3.2 Gen1 ports (Type-A) 1x VGA port 2x RJ45 ports 1x MLAN port (default) 1x Power button with LED 1x ID button with LED 1x NMI button 1x Reset button 1x Storage activity LED 1x System status LED
Rear I/O	MLAN board - CDB66: 1x MLAN port
Backplane I/O	Speed and bandwidth: PCIe Gen5 x4
LAN	Front (I/O board - CFPG540): 2x 10Gb/s LAN (1x Intel^® X710-AT2) - Support NCSI function 1x 10/100/1000 Mbps Management LAN Rear (MLAN board - CDB66): 1x 10/100/1000 Mbps Management LAN
TPM	1x TPM header with SPI interface - Optional TPM2.0 kit: CTM012

System Fans

Motherboard:
2x 60x60x56mm / 2 x 60x60x76mm

PCIe slots:
4x 80x80x56mm

GPU tray:
4x 60x60x38mm

Power Supply	4+4 3000W redundant power supplies
Certification	80 Plus Titanium
