Gigabyte G593-ZD2 5U GPU Server

SKU: AH-GPU508-GA01

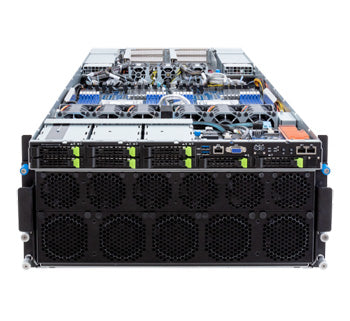

Featured Product Image

Key Features:

  • Supports NVIDIA HGX™ H100 with 8x SXM5 GPUs
  • Supports NVIDIA® NVLink® and NVSwitch™ technology
  • Up to 900GB/s GPU to GPU interconnection
  • AMD EPYC™ 9004 series processors
  • Dual processor, 5nm technology
  • 12-Channel RDIMM DDR5 per processor, 24x DIMMs
  • 2x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8x 2.5" Gen5 NVMe hot-swappable bays
  • 4x FHHL PCIe Gen5 x16 slots
  • 8x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 9004 - 5U DP HGX™ H100 8-GPU | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9004 series processors
Cores Up to 128-core, 256 threads per processor
GPU Support Up to 8x HGX™ H100 GPUs

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed Up to 4800 MHz
Memory Slots 24

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Supports NVIDIA HGX™ H100 with 8x SXM5 GPUs

8x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
2x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0
2x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1
M.2 1x M.2 slot:
M-key
PCIe Gen3 x1, from CPU_0
Supports 2280/22110 cards

1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_1
Supports 2280/22110 cards

Drive Bays

Storage
 Front side:
8x 2.5" Gen5 NVMe hot-swappable bays, from PEX89104

Input/Output


Internal I/O
 2x M.2 slots
1x TPM header
1x Front panel header
Front I/O
 2x USB 3.2 Gen1
1x VGA
2x RJ45
1x MLAN (default port)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
Rear I/O
 1x MLAN
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4
LAN Front side:
2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans Front: 5x 80x80x80mm (17,200rpm), 6x 60x60x76mm (21,700rpm)
Rear: 6x 80x80x80mm (17,000rpm), 4x 40x40x56mm (29,700rpm)
Internal: 4x 40x40x28mm (25,000rpm), 4x 60x60x56mm (24,000rpm)

Power

Power Supply 4+2 3000W (240V) redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 5U
Height 8.75" (222.25mm)
Width 17.59" (447mm)
Depth 37.20" (945mm)
