Gigabyte G593-ZX1-AAX1 5U GPU Server

SKU: AH-GPU508-GA03

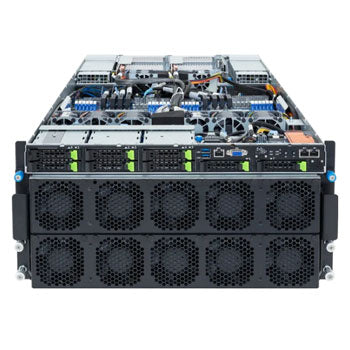

Featured Product Image

Key Features:

  • 8x AMD Instinct™ MI300X OAM GPUs
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 2x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4x FHHL PCIe Gen5 x16 slots
  • 8x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 9005/9004 - 5U DP AMD Instinct™ MI300X 8-GPU

Processor

CPU Quantity Dual processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9005 Series Processors
EPYC™ 9004 Series Processors
GPU Support 8x AMD Instinct™ MI300X OAM GPUs

Memory

Memory Type DDR5 memory supported
12-Channel memory architecture
Memory Speed AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 24x DIMM slots

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in Aspeed® AST2600
- 1x VGA port

Expansion Slots

PCI Express Extension Board CPBG044 x 2:
- 8x LP x16 (Gen5 x16), from PEX89104

Riser Card CPBGD20 x 2:
- 4x FHHL x16 (Gen5 x16), from PEX89048

Drive Bays

Storage
 Front hot-swap:
8x 2.5" Gen5 NVMe/SATA/SAS-4
- (NVMe from PEX89104)

Internal M.2:
1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0

Input/Output


Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
2x RJ45 ports
1x MLAN port (default)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x Storage activity LED
1x System status LED

Rear I/O
 MLAN board - CDB66:
1x MLAN port
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

LAN

Front:
2x 10Gb/s LAN (1x Intel® X710-AT2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN

Rear (MLAN board - CDB66):
1x 10/100/1000 Mbps Management LAN

TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans Motherboard:
2x 40x40x56mm / 4x 60x60x56mm

PCIe slots:
4x 40x40x28mm / 2x 40x40x56mm

GPU tray:
16x 80x80x80mm



Power

Power Supply 4+2 3000W redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 5U
Height 8.64" (219.7mm)
Width 17.59" (447mm)
Depth 37.20" (945mm)
