Gigabyte H262-Z63 2U Quad-Node Server

SKU: AH-RM208Q-GA01

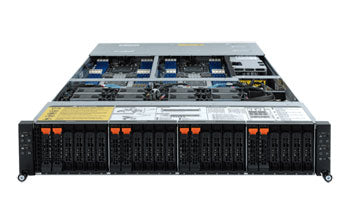

Featured Product Image

Key Features:

  • 2U 4-node rear access server system
  • AMD EPYC™ 7002 series processors
  • 8x LGA 4094 sockets
  • 4x Dedicated management ports
  • 1x CMC port
  • 8x 2.5" NVMe/SATA hot-swappable bays
  • 8x M.2 slots with PCIe Gen3 x4 interface
  • 8x LP PCIe Gen4 x16 slots
  • 4x OCP 2.0 Gen3 x16 mezzanine slots
  • 2x 2200W 80 PLUS Platinum power supplies
Request a Quote

$0.00

Share this product:

Description

HCI AMD DP 2U 4-Node Server | Application: HCI & Hybrid/Private Cloud Server

Processor (Per Node)

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7002 series processors
Cores Up to 64-cores, 128 threads

Memory (Per Node)

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory Type DDR4 memory supported only
Memory Speed Up to 3200 MHz
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Expansion Slots (Per Node)

PCI Express

2x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

1x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
M.2 1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_0
Supports NGFF-2242/2260/2280/22110 cards
CPU TDP is limited to 155W if using M.2 device

1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_1
Supports NGFF-2242/2260/2280/22110 cards
CPU TDP is limited to 155W if using M.2 device

Drive Bays (Per Node)

Storage
 2x 2.5" NVMe/SATA hot-swappable bays

Input/Output

Internal I/O

Per Node:
2x M.2 slots
1x COM header
1x TPM header
1x BMC SGPIO header
1x JTAG BMC header
1x PLD header
1x Clear CMOS jumper
1x IPMB connector
Front I/O

Per Node:
1x Power button with LED
1x ID button with LED
1x Status LED
1x System reset button

*Only one CMC status LED per system
Rear I/O

Per Node:
2x USB 3.0
1x VGA
2x RJ45
1x RJ45 MLAN

*Only one CMC port per system
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN

Per Node:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x Dedicated management port
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 80x80x38mm (16,300rpm)

Power

Power Supply 2x 2200W redundant power supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.32" (440mm)
Depth 33.07" (840mm)
Weight Net Weight: 105 lbs (47.63 kg)
Gross Weight: 109.41 lbs (49.63 kg)
