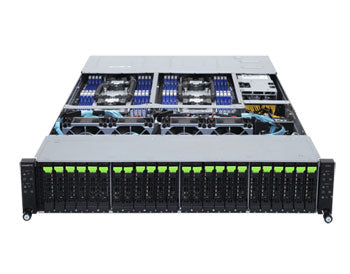

Gigabyte H262-ZL0 2U Quad-Node Server

SKU: AH-RM224Q-GA06

Featured Product Image

Key Features:

  • Hardware-level root of trust support
  • Liquid cooling solution
  • 2U 4-node rear access server system
  • AMD EPYC™ 7003 series processors
  • Dual processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 64x DIMMs
  • 24x 2.5" Gen4 NVMe hot-swappable bays
  • 4x M.2 slots with PCIe Gen4 x4 interface
  • 4x LP PCIe Gen4 x16 slots
  • 4x OCP 3.0 Gen4 x16 slots
  • 2x 2200W 80 PLUS Platinum power supplies
Request a Quote

$0.00

Share this product:

Description

HPC AMD DP 2U 4-Node Server Gen4 NVMe - Liquid Cooling Solution | Application: HPC, HCI & Hybrid/Private Cloud Server

Processor (Per Node)

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads

Memory (Per Node)

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed Up to 3200 MHz
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Expansion Slots (Per Node)

PCI Express

1x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

1x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_0
Supports NGFF-2280/22110 cards

Drive Bays (Per Node)

Storage
 6x 2.5" Gen4 NVMe/SATA hot-swappable bays
(NVMe from CPU_1, SATA from CPU_0)

Input/Output

Internal I/O

Per Node:
1x M.2 slot
1x COM header
1x TPM header
1x BMC SGPIO header
1x JTAG BMC header
1x PLD header
1x Clear CMOS jumper
1x IPMB connector
Front I/O

Per Node:
1x Power button with LED
1x ID button with LED
1x Status LED
1x System reset button
Rear I/O

Per Node:
2x USB 3.0
1x Mini-DP
2x RJ45
1x RJ45 MLAN
1x ID LED

Only one CMC port per system
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN

Per Node:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x Dedicated management port
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (16,300rpm)

Power

Power Supply 2x 2200W redundant power supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.32" (440mm)
Depth 33.07" (840mm)
