Gigabyte H263-S64 2U Quad-Node Server

SKU: AH-RM208Q-GX04

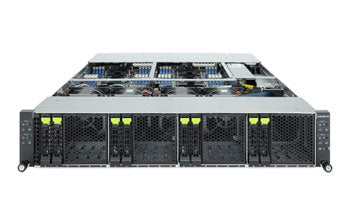

Featured Product Image

Key Features:

  • 2U 4-node rear access server system
  • 4th Gen Intel® Xeon® Scalable Processors
  • 8-Channel RDIMM DDR5 per processor, 64x DIMMs
  • 8x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4x M.2 slots with PCIe Gen4 x4 interface (optional)
  • 4x LP PCIe Gen5 x16 slots
  • 4x OCP 3.0 Gen5 x16 slots
  • Dual 3000W (240V) 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

High Density – 4th Gen Intel Xeon Scalable Server 2U 4-Node DP 8-Bay Gen4 NVMe/SATA/SAS | Application: HCI & Hybrid/Private Cloud Server

Processor (Per Node)

CPU Quantity 2
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel
CPU Supported 4th Generation Xeon® Scalable Processors

Memory (Per Node)

Memory Capacity Up to 96GB RDIMM Supported
Up to 256GB 3DS RDIMM Supported
Memory Type DDR5 memory supported only
Memory Speed 4800 MHz
Memory Slots 16

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Expansion Slots (Per Node)

PCI Express

Riser Card CRSH01U:
1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
M.2

*1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_1
Supports NGFF-2280/22110 cards

*Optional kit for M.2 riser card
PN: 9CMTP061NR-00

Drive Bays (Per Node)

Storage
 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, from CPU_1

Input/Output

Internal I/O

Per Node:
1x TPM header
1x VROC connector
1x OCP 3.0 slot
Front I/O

Per Node:
1x Power button with LED
1x ID button with LED
1x Status LED
1x System reset button
Rear I/O

Per Node:
2x USB 3.2 Gen1
1x VGA
1x RJ45 MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN

Per Node:
1x Dedicated management port
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x80mm (16,500rpm)

Power

Power Supply

Dual 3000W (240V) redundant power supplies
Available for 2+1 redundant power supply configuration (optional)
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.32" (440mm)
Depth 33.07" (840mm)
Weight Net Weight: 105 lbs (47.63 kg)
Gross Weight: 109.41 lbs (49.63 kg)
