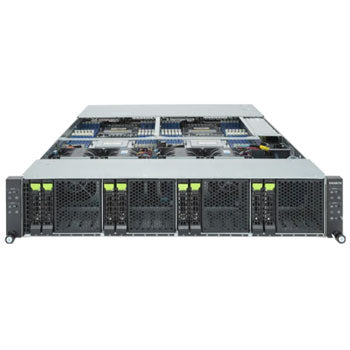

Gigabyte H273-Z81-AAW1 2U Quad-Node Server

SKU: AH-RM208Q-GA07

High Density Server - AMD EPYC™ 9005/9004 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA/SAS 3000W

Processor (Per Node)

CPU Quantity	Dual processor per node, cTDP up to 240W - With 1x low-profile card at 30°C ambient, cTDP up to 300W - With OCP NIC 3.0 at 25°C ambient, cTDP up to 300W
CPU Socket	LGA 6096 (Socket SP5)
CPU Manufacturer	AMD
CPU Supported	AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors

Memory Capacity	Up to 96GB RDIMM Supported Up to 256GB 3DS RDIMM Supported
Memory Type	DDR5 memory supported
Memory Speed	AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Memory Slots	24 Per Node

Chipset	System on Chip
System Management	ASPEED^® AST2600 Baseboard Management Controller ASPEED^® AST2520 Chassis Management Controller GIGABYTE Management Console web interface
Video	Integrated in ASPEED^® AST2600 x 4 - 4x Mini-DP

PCI Express	Riser Card CRSH01Q x 4: - 4x LP x16 (Gen5 x16), from CPU_0 Riser Card CRSH01R x 4: - 4x LP x16 (Gen5 x16), from CPU_0 4x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Support NCSI function
M.2	Optional internal M.2 (CMTP192): 4x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

Storage

Front hot-swap:
2x 2.5" Gen4 NVMe/SATA/SAS
- (NVMe from CPU_1)
- (SATA from CPU_0)

SAS card is required for SAS devices support

Front I/O	4x Power buttons with LED 4x ID buttons with LED 4x Reset buttons 4x System status LEDs 1x CMC status LED 1x CMC reset button
Rear I/O	8x USB 3.2 Gen1 ports (Type-A) 4x Mini-DP 8x RJ45 ports 4x MLAN ports 4x System status LEDs
Backplane I/O	Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN	Rear: 8x 1Gb/s LAN (4x Intel^® I350-AM2) - Support NCSI function 4x 10/100/1000 Mbps Management LAN
TPM	1x TPM header with SPI interface Optional TPM2.0 kit: CTM010

System Fans

4x 80x80x80mm (16,900rpm)

Power Supply	Dual 3000W redundant power supplies
Certification	80 Plus Titanium
