Gigabyte H273-Z82 2U Quad-Node Server

SKU: AH-RM208Q-GA03

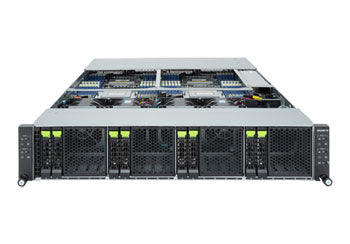

Featured Product Image

Key Features:

  • 2U 4-node rear access server system
  • AMD EPYC™ 9004 series processors
  • Dual processor per node, 5nm technology
  • 12-Channel RDIMM DDR5 per processor, 96x DIMMs
  • 4x Dedicated management ports
  • 8x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4x M.2 slots with PCIe Gen4 x4 interface (optional)
  • 4x LP PCIe Gen5 x16 slots
  • Dual 2600W (240V) 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

High Density – AMD EPYC™ 9004 - 2U 4-Node DP 8x Gen4 NVMe/SATA/SAS | Application: HCI & Hybrid/Private Cloud Server

Processor (Per Node)

CPU Quantity 2
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9004 series processors

Memory (Per Node)

Memory Capacity Up to 96GB RDIMM Supported
Up to 256GB 3DS RDIMM Supported
Memory Type DDR5 memory supported only
Memory Speed 4800 MHz
Memory Slots 24

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Expansion Slots (Per Node)

PCI Express Riser Card CRSH01R:
1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_1
Supports NGFF-2280/22110 cards

Drive Bays (Per Node)

Storage
 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
(NVMe from CPU_1, SATA from CPU_0)

Input/Output

Internal I/O

Per Node:
1x Power button with LED
1x ID button with LED
1x Status LED
1x System reset button
Front I/O

Per Node:
1x Power button with LED
1x ID button with LED
1x Status LED
1x System reset button
Rear I/O

Per Node:
2x USB 3.2 Gen1
1x Mini-DP
2x RJ45
1x RJ45 MLAN
1x Node Status LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN

Per Node:
2x 1GbE LAN ports (1x Intel® I350-AM2)
Support NCSI function
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x80mm (16,900rpm)

Power

Power Supply Dual 2600W (240V) redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.32" (440mm)
Depth 34.52" (877mm)
