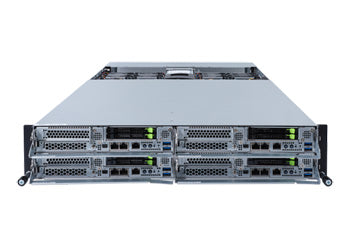

Gigabyte H282-ZC0 2U Quad-Node Server

SKU: AH-RM208Q-GA04

Featured Product Image

Key Features:

  • Hardware-level root of trust support
  • 2U 4-node front access server system
  • AMD EPYC™ 7003 series processors
  • Dual processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 128x DIMMs
  • 2x CMC ports
  • 8x 2.5" Gen4 NVMe/SATA hot-swappable bays
  • 8x M.2 slots with PCIe Gen4 x4 interface
  • 4x LP PCIe Gen4 x16 slots on front side
  • 8x FHHL PCIe Gen4 x16 slots on rear side
  • 4x OCP 3.0 Gen4 x16 slots
  • 2x 3200W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

HPC AMD EPYC™ DP 2U 4-Node - Front Access Server | Application: HCI & Hybrid/Private Cloud Server

Processor (Per Node)

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads

Memory (Per Node)

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed

Up to 3200*/2933 MHz

*Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
Memory Slots 32

On-board

System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Expansion Slots (Per Node)

PCI Express

1x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
2x PCIe x16 (Gen4 x16) FHHL slots on rear side, from CPU_1

1x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_0
Supports 2260/2280 cards
CPU TDP is limited to 240W if using M.2 device

1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_1
Supports 2260/2280 cards
CPU TDP is limited to 240W if using M.2 device

Drive Bays (Per Node)

Storage
 2x 2.5" 7mm slim type Gen4 NVMe/SATA hot-swappable bays, from CPU_0

Input/Output

Internal I/O

Per Node:
2x M.2 slots
1x COM header
1x TPM header
1x BMC SGPIO header
1x JTAG BMC header
1x PLD header
1x Clear CMOS jumper
1x IPMB connector
Front I/O

Per Node:
1x Power button with LED
1x ID button with LED
1x Status LED
1x System reset button
2x USB 3.0
1x Mini-DP
2x RJ45
1x RJ45 MLAN
Rear I/O

2x CMC ports

1x Global OCP 3.0 slot
Dedicated support for optional NVIDIA MCX565M-CDAB
multi-host adapter from system BOM version A02
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
LAN

Per Node:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x Dedicated management port
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 80x80x38mm (16,300rpm)

Power

Power Supply 2x 3200W redundant power supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.41" (86.8mm)
Width 17.59" (447mm)
Depth 35.51" (902mm)
