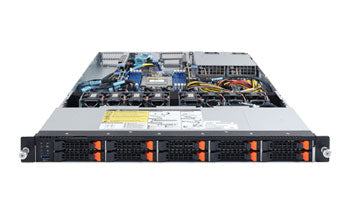

Gigabyte R162-Z10 1U GPU Server

SKU: AH-GPU110-GA01

Featured Product Image

Key Features:

  • Compatible with 3 NVIDIA Tesla® PCIe GPU cards
  • Single AMD EPYC™ 7002 series processor
  • 2x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1x Dedicated management port
  • 6x 2.5" Gen3 NVMe/SATA hot-swappable bays
  • 4x 2.5" Gen3 NVMe hot-swappable bays
  • 3x M.2 slots with PCIe Gen3 x4 interface
  • 1x LP PCIe Gen4 x16 slot
  • 2x LP PCIe Gen3 x16 slots
  • 1x OCP 2.0 Gen3 x16 mezzanine slot
  • 2x 1200W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

AMD EPYC™ 7002 Server System - 1U 10-Bay NVMe | Application: AI, AI Inference, HPC & Networking

Processor

CPU Quantity 1
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7002 series processors
Cores Up to 64-cores, 128 threads
GPU Up to 3 NVIDIA Tesla GPU

Memory

Memory Capacity Up to 128GB RDIMM Supported
Up to 128GB LRDIMM Supported
Memory Type DDR4 memory supported only
Memory Speed

Up to 3200*/2933 MHz
Memory Slots 8

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRSH01D:
1x PCIe x16 (Gen4 x16) low-profile slot

Riser Card CRS1060:
2x PCIe x16 (Gen3 x16) low-profile slots

1x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
NCSI function supported
M.2 2x M.2 slots (CMTP052):
M-key
PCIe Gen3 x4
Supports NGFF-2260/2280 cards

1x M.2 slot:
M-key
PCIe Gen3 x4
Supports NGFF-2242/2260/2280/22110 cards
CPU TDP is limited to 155W if using M.2 device

Drive Bays

Storage
 Front side:
6x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4x 2.5" Gen3 NVMe hot-swappable bays

Input/Output

Internal I/O
 3x M.2 slots
1x USB 3.0 header
1x TPM header
1x OCP 2.0 mezzanine slot
1x Front panel header
1x Backplane board header
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O
 1x USB 3.0
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
NCSI function supported

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 5x 40x40x56mm (23,000rpm)
3x 40x40x28mm (18,000rpm)

Power

Power Supply 2x 1200W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 1U
Height 1.71" (43.5mm)
Width 17.24" (438mm)
Depth 28.74" (730mm)
Weight Net Weight: 26.34 lbs (11.95 kg)
Gross Weight: 45.19 lbs (20.5 kg)
