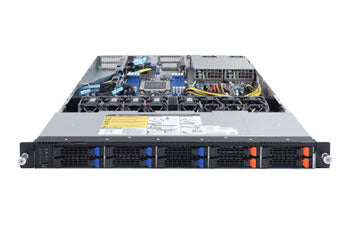

Gigabyte R162-Z11 1U GPU Server
SKU: AH-GPU110-GA02
Description
AMD EPYC™ 7003 Server System - 1U 10-Bay NVMe | Application: AI, AI Inference, HPC & Networking
Processor
CPU Quantity | 1 |
CPU Socket | Socket SP3 (LGA 4094) |
CPU Manufacturer | AMD |
CPU Supported | EPYC™ 7003 series processors |
Cores | Up to 64-cores, 128 threads |
GPU Support | Up to 3 NVIDIA Tesla GPU |
Memory
Memory Capacity | Up to 128GB RDIMM Supported Up to 128GB LRDIMM Supported 3DS RDIMM/LRDIMM modules up to 256GB supported |
Memory Type | DDR4 memory supported only |
Memory Speed |
Up to 3200 MHz |
Memory Slots | 8 |
On-board
Chipset | System on Chip |
System Management |
Aspeed® AST2500 management controller Gigabyte Management Console (AMI MegaRAC SP-X) web interface |
Video |
Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
Expansion Slots
PCI Express |
Riser Card CRSH01D: |
M.2 | 1x M.2 slot: M-key PCIe Gen3 x4 Supports NGFF-2242/2260/2280/22110 cards CPU TDP is limited to 155W if using M.2 device |
Drive Bays
Storage |
Front side: 4x 2.5" Gen3 NVMe hot-swappable bays 6x 2.5" SATA/SAS hot-swappable bays |
Input/Output
Internal I/O |
1x M.2 slot 1x USB 3.0 header 1x TPM header 1x OCP 2.0 mezzanine slot 1x Front panel header 1x Backplane board header 1x IPMB connector 1x Clear CMOS jumper 1x BIOS recovery jumper |
||
Front I/O |
1x USB 3.0 1x Power button with LED 1x ID button with LED 1x NMI button 1x Reset button 2x LAN activity LEDs 1x HDD activity LED 1x System status LED |
||
Rear I/O |
2x USB 3.0 1x VGA 2x RJ45 1x MLAN 1x ID LED |
||
Backplane I/O |
Speed and bandwidth: PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s |
||
LAN |
Rear side: 2x 1GbE LAN ports (1x Intel® I350-AM2) NCSI function supported 1x 10/100/1000 management LAN |
||
TPM | 1x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
Cooling
System Fans | 5x 40x40x56mm (23,000rpm) 3x 40x40x28mm (18,000rpm) |
Power
Power Supply | 2x 1200W redundant power supplies |
Certification | 80 PLUS Platinum |
Dimensions
Form Factor | Rackmount |
Rack Height | 1U |
Height | 1.71" (43.5mm) |
Width | 17.24" (438mm) |
Depth | 28.74" (730mm) |
Weight | Net Weight: 26.34 lbs (11.95 kg) Gross Weight: 45.19 lbs (20.5 kg) |
