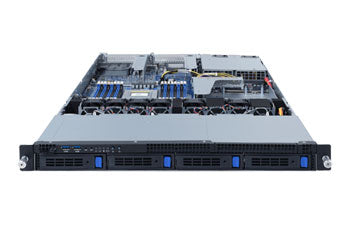

Gigabyte R162-ZA0 1U Rackmount Server

SKU: AH-RM104-GA04

Featured Product Image

Key Features:

  • Single AMD EPYC™ 7003 series processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16x DIMMs
  • 4x 3.5/2.5" SATA hot-swappable bays
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 2x FHHL PCIe Gen4 x16 and x8 slots
  • 1x Internal FHHL PCIe Gen4 x16 slot
  • 1x OCP 3.0 Gen4 x16 mezzanine slot
  • 1x OCP 2.0 Gen3 x8 mezzanine slot
  • Dual 800W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

AMD EPYC™ 7003 Server System - 1U 4-Bay | Application: Networking

Processor

CPU Quantity 1
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads

Memory

Memory Capacity Up to 128GB RDIMM Supported
Up to 128GB LRDIMM Supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed

Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRS101E x 2:
1x PCIe x16 (Gen4 x16) FHHL slot
1x PCIe x16 (Gen4 x8 or x16) FHHL slot, shared with OCP 2.0

Internal Riser Card CRS101H:
1x PCIe x16 (Gen4 x16) FHHL slot

1x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

1x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS101E
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4
Supports NGFF-2280/22110 cards

Drive Bays

Storage
 Front side:
4x 3.5/2.5" SATA hot-swappable bays
SATA devices supported only
Peripheral Drives 1‎x Slim type ODD (optional)

NOTE: For 12.7mm ODD only

Input/Output

Internal I/O
 1x M.2 slot
1x USB 3.0 header
1x COM header
1x TPM header
1x OCP 3.0 mezzanine slot
1x OCP 2.0 mezzanine slot
1x Front panel header
1x Backplane board header
1x PMBus connector
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O
 2x USB 3.0
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
SATA 6Gb/s
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 6x 40x40x28mm (25,000rpm)

Power

Power Supply Dual 800W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 1U
Height 1.71" (43.5mm)
Width 17.24" (438mm)
Depth 28.74" (730mm)
Weight Net Weight: 26.34 lbs (11.95 kg)
Gross Weight: 45.19 lbs (20.5 kg)
