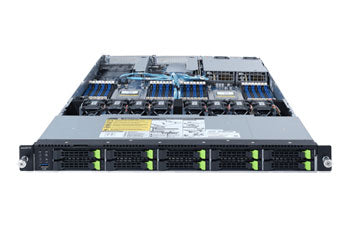

Gigabyte R182-Z93 1U Rackmount Server

SKU: AH-RM110-GA06

Featured Product Image

Key Features:

  • Hardware-level root of trust support
  • Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32x DIMMs
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 10x 2.5" Gen4 NVMe hot-swap bays
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 2x FHHL PCIe Gen4 x16 slots
  • 1x OCP NIC 3.0 PCIe Gen4 x16 slot
  • 1+1 1200W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Rack Server - AMD EPYC™ 7003/7002 - 1U DP 10-Bay Gen4 NVMe

Processor

CPU Quantity Dual processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 Series Processors
EPYC™ 7002 Series Processors
Cores Up to 64-cores, 128 threads

Memory

Memory Capacity Up to 128GB RDIMM Supported
Up to 128GB LRDIMM Supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported
8-Channel memory per processor
Memory Speed



RDIMM/LRDIMM: Up to 3200/2933 MT/s


Memory Slots 32

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRS101E x 2:
1x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
1x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO132, 2 x NVMe HBA
Supports NCSI function
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_0
Supports 2242/2260/2280/22110 cards
CPU TDP is limited to 225W if using M.2 device

Drive Bays

Storage
 Front side:
10x 2.5" Gen4 NVMe hot-swappable bays
(2x from CPU_0, 8x from CPU_1)

Input/Output

Front I/O
 1x USB 3.0 port (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 40x40x56mm (23,000rpm)

Power

Power Supply 1+1 1200W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 1U
Height 1.71" (43.5mm)
Width 17.24" (438mm)
Depth 28.74" (730mm)
Weight Net Weight: 28.66 lbs (13 kg)
Gross Weight: 48.50 lbs (22 kg)
