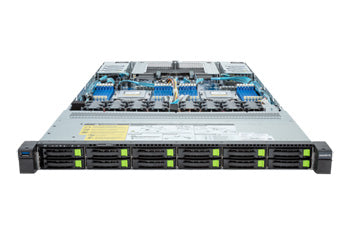

Gigabyte R183-Z92 1U Rackmount Server

SKU: AH-RM112-GA02

Featured Product Image

Key Features:

  • AMD EPYC™ 9004 series processors
  • Dual processor, 5nm technology
  • 12-Channel RDIMM DDR5, 24x DIMMs
  • 12x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 3x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 2x FHHL PCIe Gen5 x16 slots
  • 2x OCP 3.0 Gen5 x16 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • Dual 1600W 80 PLUS Platinum redundant power supply
Request a Quote

$0.00

Share this product:

Description

AMD EPYC™ 9004 - 1U DP 12-Bay NVMe/SATA/SAS | Application: Networking

Processor

CPU Quantity 2
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9004 series processors
Cores Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C

Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed

Up to 4800 MHz
Memory Slots 24

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Riser Card CRS101T:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101Q:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
M.2 1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_0
Supports 2280/22110 cards

1x M.2 slot:
M-key
PCIe Gen3 x4, from CPU_1
Supports 2280/22110 cards

1x M.2 slot:
M-key
PCIe Gen3 x2, from CPU_1
Supports 2280/22110 cards

Drive Bays

Storage
 Front side:
12x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
(4x NVMe from CPU_0, 8x NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support
RAID Optional compatible RAID Cards:

NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-ED12
Support RAID 0/1/5/6/10

Input/Output

Internal I/O
 3x M.2 slots
1x TPM header
2x OCP 3.0 slots
Front I/O
 1x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x Mini-DP
2x RJ45
1x MLAN
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
Support NCSI function

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 40x40x56mm (32,000rpm)

Power

Power Supply Dual 1600W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 1U
Height 1.71" (43.5mm)
Width 17.24" (438mm)
Depth 32.08" (815mm)
