Gigabyte R263-S30-AAC1 2U Rackmount Server

SKU: AH-RM212-GX01

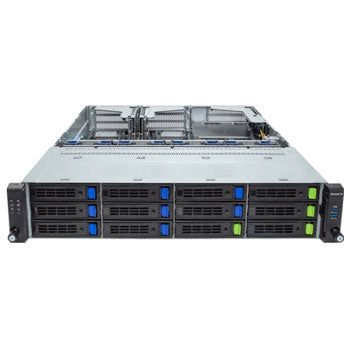

Featured Product Image

Key Features:

  • Single 5th/4th Gen Intel® Xeon® Scalable Processors
  • Single Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 16x DIMMs
  • Dual ROM Architecture
  • 1x 1Gb/s LAN port via Intel® I210-AT
  • 4x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swap bays
  • 8x 3.5"/2.5" SATA/SAS hot-swap bays
  • 1x M.2 slot with PCIe Gen3 x4 interface
  • 2x FHHL PCIe Gen5 x16 slots
  • 2x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • 1+1 1300W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 12-Bay Gen4 NVMe/SATA/SAS Platinum

Processor

CPU Quantity Single processor, TDP up to 350W
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported
8-Channel memory per processor
Memory Speed

5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Memory Slots 16

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in Aspeed® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

Riser Card CRS201C:
- 1x FHHL x16 (Gen5 x16)

Riser Card CRS201D:
- 1x FHHL x16 (Gen5 x16)

2x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
M.2 Internal M.2:
1x M.2 (2280/22110), PCIe Gen3 x4, from PCH

Drive Bays

Storage
 Front hot-swap:
4x 3.5"/2.5" Gen4 NVMe/SATA/SAS
8x 3.5"/2.5" SATA/SAS

SAS card is required for SAS devices support
RAID Intel® SATA RAID 0/1/10/5
Onboard VROC key header

Optional  compatible RAID Cards:

NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1001-ED4
Support RAID 0/1/5/6/10

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x Storage activity LED
1x System status LED

Rear I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
1x RJ45 port
1x MLAN port
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

LAN Rear:
1x 1Gb/s LAN (1x Intel® I210-AT)
- Supports NCSI function

1x 10/100/1000 Mbps Management LAN

TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (18,300rpm)

Power

Power Supply 1+1 1300W (240V) redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 27.95" (710mm)
