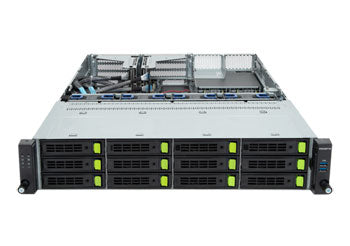

Gigabyte R263-Z30 2U Rackmount Server

SKU: AH-RM212-GA04

Key Features:

  • AMD EPYC™ 9004 series processor
  • Single processor, 5nm technology
  • 8-Channel RDIMM DDR5 per processor, 12x DIMMs
  • 12x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 1x M.2 slot with PCIe Gen3 x4 interface
  • 2x FHHL PCIe Gen5 x16 slots
  • 2x OCP 3.0 Gen5 x16 slots
  • 1+1 1300W (240V) 80 PLUS Titanium redundant power supplies

Request a Quote



AMD EPYC™ 9004 - 2U UP 12-Bay NVMe/SATA/SAS | Application: Networking


CPU Quantity 1
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9004 series processors
Cores Up to 128-cores, 256 threads per processor


Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed

Up to 4800 MHz

Memory Slots 12


Chipset System on Chip
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Riser Card CRS201H:
1x PCIe x16 (Gen5 x16) FHHL slot

Riser Card CRS201M:
1x PCIe x16 (Gen5 x16) FHHL slot

2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function

M.2 1x M.2 slot:
PCIe Gen3 x4
Supports 2280/22110 cards

Drive Bays

Front side:
12x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support


Internal I/O
1x M.2 slot
1x TPM header
2x OCP 3.0 slots
Front I/O
2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x HDD activity LED
1x System status LED
Rear I/O
2x USB 3.2 Gen1
1x Mini-DP
1x RJ45
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
1x 1Gb/s LAN port (1x Intel® I210-AT)
Supports NCSI function

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010


System Fans 4x 80x80x38mm (18,300rpm)


Power Supply 1+1 1300W (240V) redundant power supplies
Certification 80 PLUS Titanium


Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 27.95" (710mm)
