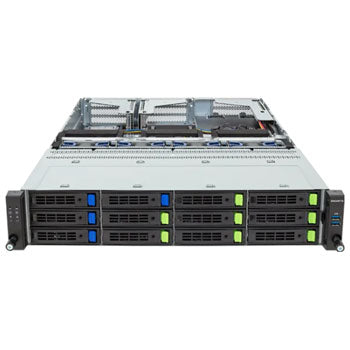

Gigabyte R263-Z35-AAL1 2U GPU Server

SKU: AH-GPU212-GA03

Featured Product Image

Key Features:

  • Supports up to 3x Dual slot Gen5 GPUs
  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 12x DIMMs
  • Dual ROM Architecture
  • 1x 1Gb/s LAN port via Intel® I210-AT
  • 8x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4x 3.5"/2.5" SATA/SAS-4 hot-swap bays
  • 1x M.2 slot with PCIe Gen3 x4 interface
  • 3x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x OCP NIC 3.0 PCIe Gen5 x16 slots
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Rack Server - AMD EPYC™ 9005/9004 - 2U UP 3 x PCIe Gen5 GPUs Titanium

Processor

CPU Quantity Single processor, cTDP up to 400W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9005 Series Processors
EPYC™ 9004 Series Processors
GPU Support Up to 2 Dual-slot Gen5 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported
12-Channel memory per processor
Memory Speed

AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 12

On-board

Chipset System on Chip
System Management
 ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in ASPEED® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

Riser Card CRS201H:
- 1x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS201M:
- 1x FHFL x16 (Gen5 x16), for GPUs

PCIe Cable:
- 1x FHFL x16 (Gen5 x16), for GPUs

2x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
M.2 Internal M.2:
1x M.2 (2280/22110), PCIe Gen3 x4

Drive Bays

Storage
 Front hot-swap:
8x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
4x 3.5"/2.5" SATA/SAS-4

SAS card is required for SAS devices support

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs (1x LED disabled)
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
1x RJ45 port
1x MLAN port
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
LAN Rear side:
1x 1Gb/s LAN port (1x Intel® I210-AT)
Supports NCSI function

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (18,300rpm)

Power

Power Supply

1+1 2700W redundant power supplies

The system power supply requires C19 power cord.
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 27.95" (710mm)
