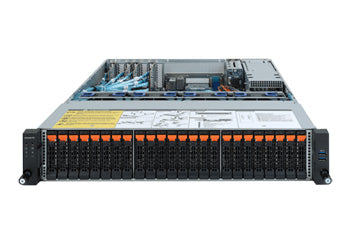

Gigabyte R272-Z32 2U Rackmount Server

SKU: AH-RM226-GA02

Key Features:

  • Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
  • AMD EPYC™ 7003 series processor family
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 16x DIMMs
  • 24x 2.5" Gen3 NVMe hot-swappable bays
  • 2x 2.5" SATA/SAS hot-swappable bays on rear side
  • 2x M.2 slots with PCIe Gen3 x4 interface
  • 1x LP PCIe Gen4 x8 slot
  • 2x 1200W 80 PLUS Platinum redundant power supplies

Request a Quote

$0.00

Description

AMD EPYC™ 7003 UP Server System - 2U 26-Bay NVMe | Application: Networking

Processor

CPU Quantity 1
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads

Memory

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed

Up to 3200*/2933 MHz

Note: Follow BIOS setting and memory QVL list if running 3200 MHz with 2DPC

Memory Slots 16

On-board

Chipset System on Chip
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Total 1x PCIe Gen4 low-profile slot
Slot_6: 1x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4x NVMe HBA
Slot_5: 1x PCIe x16 (Gen4 x8) slot
Slot_4: 1x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4x NVMe HBA
Slot_3: 1x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4x NVMe HBA
Slot_2: 1x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3024, 4x NVMe HBA

NOTE: Slot_7 is not available for this system model

1x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVO124, 4x NVMe HBA

M.2 2x M.2 slots:
M-key
PCIe Gen3 x4
Supports NGFF-2242/2260/2280 cards

Drive Bays

Storage

Front side:
24x 2.5" Gen3 NVMe hot-swappable bays

Rear side:
2x 2.5" SATA/SAS hot-swappable bays

Input/Output

Front I/O
2x USB 3.0
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
3x USB 3.0
1x VGA
1x COM
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
Front side - CBP20O5: PCIe Gen3 x4
Rear side - CBP2021:
SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (16,300rpm)

Power

Power Supply 2x 1200W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 25.98" (660mm)
Weight Net Weight: 39.19 lbs (17.78 kg)
Gross Weight: 54.58 lbs (24.76 kg)
