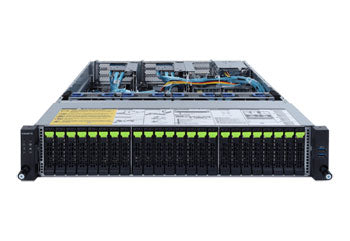

Gigabyte R282-Z94 2U Rackmount Server

SKU: AH-RM224-GA05

Featured Product Image

Key Features:

  • Hardware-level root of trust
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32x DIMMs
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 24x 2.5" Gen4 NVMe hot-swappable bays
  • 2x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 1x FHHL PCIe Gen4 x16 slot
  • 1+1 1600W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS

Processor

CPU Quantity

Dual processor, 7nm technology
cTDP up to 280W
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 Series Processors
EPYC™ 7002 Series Processors
Cores Up to 64 cores, 128 threads per processor

Memory

Memory Capacity RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory Type DDR4 memory supported only
8-Channel memory architecture
Memory Speed

Memory speed: Up to 3200/2933 MT/s
Memory Slots 32

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRS2015:
1x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by CNV3134 - 4x NVMe HBA

Riser Card CRS2033 x 2:
1x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
2x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1, occupied by 2x CNV3132 - 2x NVMe HBAs
2x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1, occupied by 2x CNV3132 - 2x NVMe HBAs

1x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134 - 4x NVMe HBA
Supports NCSI function

1x OCP 2.0 mezzanine slot with PCIe Gen4 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO132 - 2x NVMe HBA
Supports NCSI function

1x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO022 - 2x NVMe HBA
Supports NCSI function
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_0
Supports 2242/2260/2280/22110 cards
CPU TDP is limited to 225W if using M.2 device

Drive Bays

Storage
 Front side:
24x 2.5" Gen4 NVMe hot-swappable bays
(12x from CPU_0, 12x from CPU_1)

Rear side:
2x 2.5" SATA/SAS hot-swappable bays, from CPU_0

Input/Output

Internal I/O
 1x TPM header
Front I/O
 2x USB 3.0
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
Front side - CBP20O8: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1Gb/s LAN ports (1x Intel® I350-AM2)
Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (16,300rpm)

Power

Power Supply 1+1 1600W (240V) redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.42" (87mm)
Width 17.24" (438mm)
Depth 28.74" (730mm)
Weight Net Weight: 40.78 lbs. (18.5 kg)
Gross Weight: 56.21 lbs. (25.5 kg)
