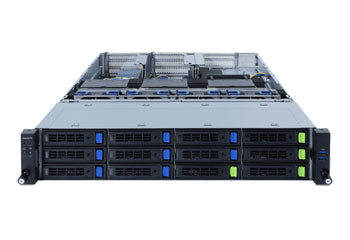

Gigabyte R282-Z96 2U GPU Server

SKU: AH-GPU212-GA02

Featured Product Image

Key Features:

  • Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32x DIMMs
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 4x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 3x FHFL PCIe Gen4 x16 slots for GPUs
  • 1x FHHL PCIe Gen4 x16 slot
  • 1x OCP 3.0 Gen4 x16 slot
  • 1x OCP 2.0 Gen3 x8 mezzanine slot
  • Dual 2000W 80 PLUS Platinum redundant power supply
Request a Quote

$0.00

Share this product:

Description

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 3 x PCIe Gen4 GPUs

Processor

CPU Quantity Dual processor, 7nm technology
cTDP up to 240W
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 Series Processors
EPYC™ 7002 Series Processors
Cores Up to 64 cores, 128 threads per processor
GPU Support Up to 3x PCIe Gen4 GPUs

Memory

Memory Capacity RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory Type DDR4 memory supported only
8-Channel memory architecture
Memory Speed

Memory speed: Up to 3200*/2933 MT/s
Memory Slots 32

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRS2014:
1x PCIe x16 (Gen4 x16) FHFL slot, from CPU_1, for GPUs

Riser Card CRS2026 x 2:
1x PCIe x16 (Gen4 x16) FHFL slot, from CPU_0, for GPUs
1x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3134 - 4x Gen4 NVMe HBA
1x PCIe x16 (Gen4 x16) FHFL slot, from CPU_1, for GPUs
1x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function
M.2 1x M.2 slot:
M-key
PCIe Gen4 x4, from CPU_0
Supports 2242/2260/2280/22110 cards
CPU TDP is limited to 225W if using M.2 device

Drive Bays

Storage
 Front side:
4x 3.5"/2.5" Gen4 NVMe/SATA hot-swappable bays
(NVMe from CPU_0, SATA from CPU_1)

8x 3.5"/2.5" SATA/SAS hot-swappable bays, from CPU_0

Input/Output

Internal I/O
 1x M.2 slot
1x USB 3.0 header
1x COM header
1x TPM header
1x Front panel header
1x HDD backplane board header
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O
 2x USB 3.0
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD activity LED
2x LAN activity LEDs
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (16,300rpm)

Power

Power Supply Dual 2000W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.42" (87mm)
Width 17.24" (438mm)
Depth 28.74" (730mm)
