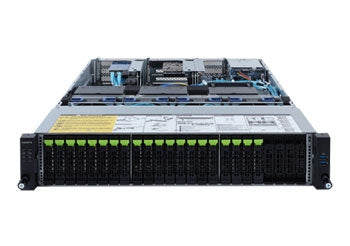

Gigabyte R282-Z9G 2U Rackmount Server
SKU: AH-RM220-GA01
Description
AMD EPYC™ 7003 DP Server System - 2U 20-Bay Gen4 NVMe with GRAID solution | Application: Networking
Processor
CPU Quantity | 2 |
CPU Socket | Socket SP3 (LGA 4094) |
CPU Manufacturer | AMD |
CPU Supported | EPYC™ 7003 series processors |
Cores | Up to 64-cores, 128 threads |
Memory
Memory Capacity | RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported 3DS RDIMM/LRDIMM modules up to 256GB supported |
Memory Type | DDR4 memory supported only |
Memory Speed |
Up to 3200*/2933 MHz |
Memory Slots | 32 |
On-board
Chipset | System on Chip |
System Management |
Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface |
Video |
Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
Expansion Slots
PCI Express |
Riser Card CRS2033: |
M.2 |
1x M.2 slot: M-key PCIe Gen4 x4, from CPU_0 Supports 2242/2260/2280/22110 cards CPU TDP is limited to 225W if using M.2 device |
Drive Bays
Storage |
Front side: SAS card is required for SAS devices support |
RAID | Equipped with GRAID SupremeRAID NVMe/NVMe-oF RAID Card RAID Card models: SR1010, SR1000 Support RAID 0/1/10/5/6 Maximum 20 physical drives Support NVMe/SAS/SATA SSD and SAS/SATA HDD |
Input/Output
Internal I/O |
1x M.2 slot 1x USB 3.0 header 1x COM header 1x TPM header 1x Front panel header 1x HDD backplane board header 1x PMBus connector 1x IPMB connector 1x Clear CMOS jumper 1x BIOS recovery jumper |
||
Front I/O |
2x USB 3.0 1x Power button with LED 1x ID button with LED 1x Reset button 1x NMI button 1x System status LED 1x HDD activity LED 2x LAN activity LEDs |
||
Rear I/O |
2x USB 3.0 1x VGA 2x RJ45 1x MLAN 1x ID button with LED |
||
Backplane I/O |
Speed and bandwidth: Front side - CBP20O8: PCIe Gen4 x4 Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s |
||
LAN |
Rear side: 2x 1GbE LAN ports (1x Intel® I350-AM2) 1x 10/100/1000 management LAN |
||
TPM | 1x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
Cooling
System Fans | 4x 80x80x38mm (16,300rpm) |
Power
Power Supply | 2x 1600W redundant power supplies |
Certification | 80 PLUS Platinum |
Dimensions
Form Factor | Rackmount |
Rack Height | 2U |
Height | 3.42" (87mm) |
Width | 17.24" (438mm) |
Depth | 28.74" (730mm) |
