Gigabyte R283-S93 2U GPU Server

SKU: AH-GPU212-GX02

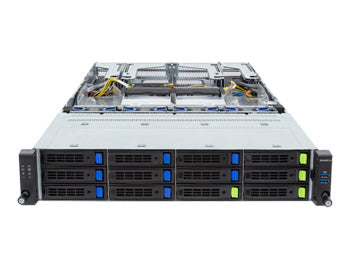

Featured Product Image

Key Features:

  • Supports up to 2x Dual slot Gen5 GPU cards
  • 4th Gen Intel® Xeon® Scalable Processors
  • Dual processor, LGA 4677
  • 8-Channel RDIMM DDR5, 32x DIMMs
  • 4x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 2x FHHL PCIe Gen5 x16 slots for GPUs
  • 4x LP PCIe Gen5 x8 slots
  • 2x OCP 3.0 Gen5 x16 slots
  • 2x 2400W 80 PLUS Platinum redundant power supply
Request a Quote

$0.00

Share this product:

Description

Rack Server - 4th Gen Intel® Xeon® - 2U DP 12-Bay NVMe/SATA/SAS | Application: Networking

Processor

CPU Quantity 2
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 4th Generation Xeon® Scalable Processors
Cores Up to 60-cores
GPU Support Up to 2 Dual slot Gen5 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
LRDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed

Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
Memory Slots 32

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Riser Card CRS101J:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101K:
1x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

Riser Card CRS202E x 2:
2x PCIe x16 (Gen5 x8) low-profile slots, from CPU_0
2x PCIe x16 (Gen5 x8) low-profile slots, from CPU_1

Riser Card CRS202G:
1x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs

Riser Card CRS202H:
1x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

Drive Bays

Storage
 Front side:
4x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
8x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
RAID Intel® SATA RAID 0/1/10/5

Input/Output

Internal I/O
 1x TPM header
1x VROC connector
2x OCP 3.0 slots
Front I/O
 2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x Mini-DP
2x RJ45
1x MLAN
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 1Gb/s LAN ports (1x Intel® I350-AM2)
Support NCSI function

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (18,300rpm)

Power

Power Supply 2x 2400W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 32.08" (815mm)
