Gigabyte R283-Z96-AAE3 2U Rackmount Server

SKU: AH-RM228-GA09

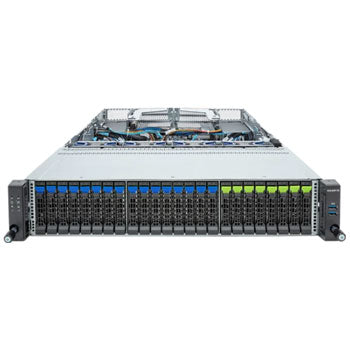

Featured Product Image

Key Features:

  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 8x 2.5" Gen5 NVMe hot-swap bays
  • 16x 2.5" SATA/SAS-4 hot-swap bays
  • 3x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 3x FHHL PCIe Gen5 x16 slots
  • 2x OCP NIC 3.0 PCIe Gen5 x16 slots
  • 1+1 2000W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Rack Server - AMD EPYC™ 9005/9004 - 2U DP 24-Bay Gen5 NVMe/SATA/SAS-4 (8 x NVMe) Platinum

Processor

CPU Quantity Dual processor, cTDP up to 400W
- cTDP up to 500W with optional heatsink
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9005 Series Processors
EPYC™ 9004 Series Processors

Memory

Memory Capacity RDIMM modules up to 96GB supported
LRDIMM modules up to 256GB supported
Memory Type DDR5 memory supported
12-Channel memory per processor
Memory Speed AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 24

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in ASPEED® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

PCIe Cable x 3:
- 1x FHHL x16 (Gen5 x16), from CPU_0
- 2x FHHL x16 (Gen5 x16), from CPU_1

1x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
M.2 Internal M.2:
1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

Drive Bays

Storage
 Front hot-swap:
8x 2.5" Gen5 NVMe
16x 2.5" SATA/SAS-4
- (4x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)

SAS card is required for SAS devices support.

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED

Rear I/O
 G-SCM board - CDCR114:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
2x RJ45 ports
1x MLAN port
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

LAN Rear (G-SCM board - CDCR114):
2x 1Gb/s LAN (1x Intel® I350-AM2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN

TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm

Power

Power Supply 1+1 2000W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 32.08" (815mm)
