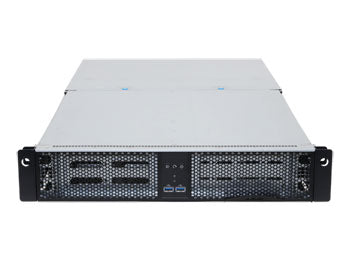

Gigabyte S252-ZC0 2U Rackmount Server

SKU: AH-RM226-GA01

Featured Product Image

Key Features:

  • AMD EPYC™ 7003 series processor family
  • Dual processor, LGA 4094
  • 8-Channel RDIMM/LRDIMM DDR4, 16x DIMMs
  • 24x 3.5" SATA/SAS hot-swappable bays
  • 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Onboard 12Gb/s SAS expander
  • 2x SATA DOM supported
  • 6x LP PCIe Gen4 x16 slots
  • 1+1 1300W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

2‎U 24+2-Bay DP Storage Server (AMD MILAN/ROME) | Application: Storage

Processor

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads

Memory

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed Up to 3200/2933 MHz
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

3x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
3x PCIe x16 (Gen4 x16) low-profile slots, from CPU_1

Drive Bays

Storage

Side-accessed:
24x 3.5" SATA/SAS hot-swappable bays
LSI SAS35x36R expander

SAS card is required to enable the 24 drive bays

Rear side:
2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

Default configuration supports:
2x 2.5" Gen4 NVMe/SATA/SAS drives on rear side

Input/Output

Internal I/O
 1x CPU fan header
6x System fan headers
1x USB 3.0 header
1x TPM header
1x Front panel header
1x Buzzer
Front I/O
 2x USB 3.0
1x Power button with LED
1x ID button with LED
1x Reset button
1x System status LED
1x HDD activity LED
Rear I/O
 2x USB 3.0
1x VGA
1x MLAN
1x Power button with LED
1x ID button with LED
1x System status LED
Backplane I/O Left side: CBPD2C0: 12x 3.5" SATA/SAS ports with expander
Right side: CBPD2C1: 12x 3.5" SATA/SAS ports
Rear side: CBPD020: 2x 2.5" Gen4 NVMe/SATA/SAS hybrid ports
LAN Rear side:
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 6x 60x60x38mm hot-swappable fan modules

Power

Power Supply 1+1 1300W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.42" (87mm)
Width 17.24" (438mm)
Depth 34.64" (880mm)
