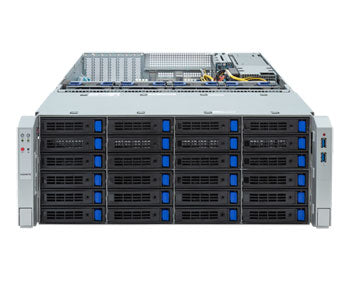

Gigabyte S453-S70 4U Storage Server

SKU: AH-RM436-GX01

Featured Product Image

Key Features:

  • 4th Gen Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Dual processor, LGA 4677
  • 8-Channel RDIMM DDR5 per processor, 16x DIMMs
  • 24x 3.5"/2.5" SATA/SAS hot-swappable bays on front side
  • 12x 3.5"/2.5" SATA/SAS hot-swappable bays on rear side
  • 2x 2.5" SATA/SAS bays on rear side for boot drives
  • SAS expander with 12Gb/s transfer speed
  • 2x M.2 slots with PCIe Gen4 x4 interface
  • 6x LP PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

Storage Server - 4th Gen Intel® Xeon® - 4U DP 36+2-Bay SATA/SAS | Application: Storage & Networking

Processor

CPU Quantity 2
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 4th Generation Xeon® Scalable Processors
Cores Up to 60-cores

Memory

Memory Capacity

RDIMM modules up to 96GB supported*

*NOTE: Total memory supports up to 512GB with 1600W power supply. Please select 2000W power supply for higher memory configuration.
Memory Type DDR5 memory supported only
Memory Speed Up to 4800 MHz
Memory Slots 16

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express 6x PCIe x 16 (Gen5 x16) low-profile slots
M.2 2x M.2 slots:
M-key
PCIe Gen4 x4, from CPU_0
Supports NGFF-2280/22100 cards

Drive Bays

Storage
 Front side:
24x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander

Rear side:
12x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
2x 2.5" SATA/SAS bays for boot drives, from onboard connector
(Additional SAS card is required for SAS support on boot drives)

1x Broadcom SAS35x48 expanders
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

SAS card is required to enable the drive bays

Input/Output

Internal I/O
 2x M.2 slots
1x TPM header
1x VROC connector
Front I/O
 2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x Reset button
1x HDD status LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x VGA
1x COM
4x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth:
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 10Gb/s LAN ports (1x Intel® X710-AT2)
2x 1GbE LAN ports (2x Intel® I210-AT)
NCSI function supported (by switch setting)

1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (16,300rpm)
4x 80x80x38mm (9,000rpm)

Power

Power Supply 2x 1600W redundant power supplies
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 4U
Height 6.96" (177mm)
Width 19.0" (482.6mm)
Depth 24.60" (625mm)
