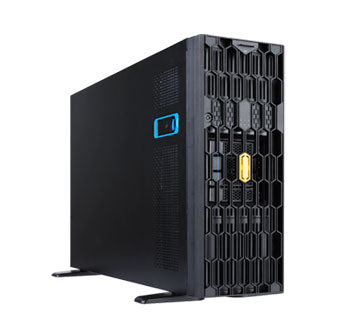

Gigabyte W771-Z00 GPU Workstation

SKU: AH-GPU408-GA06

Featured Product Image

Key Features:

  • AMD Ryzen™ Threadripper™ PRO 5000WX and 3000WX Processors
  • 8-Channel DDR4 UDIMM/RDIMM/3DS RDIMM/LRDIMM, 8x DIMMs
  • Dual Intel® 10GbE and 1GbE LAN Ports
  • 1x Dedicated Management Port
  • 7x PCIe 4.0 Slots for Multi-GPU
  • Up to 8x 3.5” SATA HDD Bays and 2x M.2 (NVMe and SATA mode)
  • Default 6x system Fan, and optional external 2x GPU Fan
  • 2x 2000W CRPS RPSU 80+ Platinum Power Supply
Request a Quote

$0.00

Share this product:

Description

AMD® Ryzen™ Threadripper™ PRO Tower GPU Workstation | Application: AI, AI Training, AI Inference, Visual Computing & HPC

Processor

CPU Quantity 1
CPU Socket Socket sWRX8
CPU Manufacturer AMD®
CPU Supported Ryzen™ Threadripper™ PRO 5000WX Processor
Ryzen™ Threadripper™ PRO 3000WX Processor
Cores Up to 64-core, 128 threads
GPU Support Up to 4 Double-wide GPU

Memory

Memory Capacity UDIMM, RDIMM, LRDIMM, 3DS R-DIMM; ; ECC & Non-ECC; buffered & unbuffered. Total up to 2TB of system memory (256GB single LRDIMM capacity)
Memory Type DDR4 memory supported only
Memory Speed Support for 3200/2933/2666/2400/2133 MHz
Memory Slots 8

On-board

Chipset AMD® WRX80
System Management
 Aspeed® AST2600 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio Realtek® ALC4080 HD audio codec
Supports 7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)

Expansion Slots

PCI Express Slot_7: 1x PCIe x16 (Gen4 x16) slot
Slot_6: 1x PCIe x16 (Gen4 x16) slot
Slot_5: 1x PCIe x16 (Gen4 x16) slot
Slot_4: 1x PCIe x16 (Gen4 x16) slot
Slot_3: 1x PCIe x16 (Gen4 x16) slot
Slot_2: 1x PCIe x16 (Gen4 x8) slot
Slot_1: 1x PCIe x16 (Gen4 x16) slot
M.2 2x M.2 slot for storage:
M-key
PCIe Gen4 x4 or 4x SATA 6Gb/s
Supports NGFF-2242/2280 card

1x M.2 slot for Wi-Fi:
E-key
Supports NGFF-2230 card

Drive Bays

Storage
 4x 3.5"/2.5" SATAIII hot-swappable HDD/SSD bays
Additional 4x 3.5"/2.5" SATAIII hot-swappable HDD/SSD bays (Option)
2x M.2 slot for storage (M-Key; NGFF-2242/2280; PCIe Gen4 x4 or SATA III 6Gb/s)

SAS card is required for SAS devices support
RAID RAID 0, RAID 1, RAID 5 and RAID 10
Peripheral Drives 1x 5.25" space reserved for ODD device

Input/Output

Internal I/O
 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU Fan header
1x PCH Fan header
8x System Fan headers
2x USB 3.0 headers for 4 ports
1x PMBus connector
4x SATA III 6Gb/s ports
2x M.2 slot for storage
1x M.2 slot for Wi-Fi
3x slimSAS connectors
1x Front panel header
1x Back plane board header
1x PMBus header
1x IPMB header
1x TPM header
1x COM header 6 x System fan headers
1x USB 3.0 header
2x COM headers
1x TPM header
1x Front panel header
1x HDD back plane board header
1x PMBus connector
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O
 1x Front Panel Lock
2x USB 3.0
1x Power button
1x Reset button
1x Power LED
1x Hard drives status LED
1x System status LED
1x UID LED
2x LAN activity/link LEDs
4x Hard drive bays
Rear I/O

1x VGA
1x ID Button
2x USB 3.2 gen2 (Type-A + Type-C®)
1x RJ45 (GbE LAN)
1x MLAN
4x USB 3.2 gen2 Type-A
2x RJ45 (red) (10GbE LAN)
1x 3 in 1 Audio jacks
1x Power switch with LED
LAN 2x 10GbE LAN (Intel® X550-AT2)
1x GbE LAN (Intel® i210)
1x 10/100/1000 management LAN
TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

Fans 4x 80x80x38mm (11,000 rpm)
2x 80x80x38mm (8,200 rpm)

Power

Power Supply 2x 2000W Redundant Power Supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Tower
Rack Height 4U
Height 17.7" (438mm)
Width 6.88" (175mm)
Depth 26.77" (680.mm)
Weight Net Weight: 48.5 lbs (22 kg)
Gross Weight: 52.91 lbs (24 kg)
Color Black
