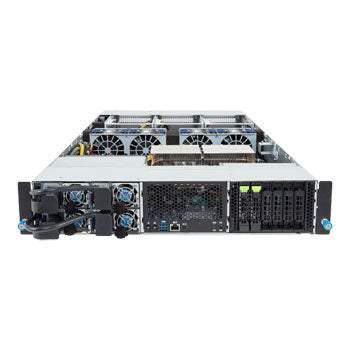

Gigabyte XV23-VC0-AAJ1 2U GPU Server

SKU: AH-GPU204-GN02

Featured Product Image

Key Features:

  • Supports up to 4x Dual slot Gen5 GPUs
  • High-performance CPU for HPC and cloud computing
  • NVIDIA MGX™ modular server design
  • NVIDIA Grace™ CPU Superchip
  • 900GB/s NVIDIA® NVLink®-C2C Interconnect
  • Up to 960GB CPU LPDDR5X ECC memory
  • Compatible with NVIDIA BlueField®-3 DPUs
  • 2x 2.5" Gen5 NVMe hot-swap bays
  • 2x M.2 slots with PCIe Gen5 x4 interface
  • 4x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x FHFL PCIe Gen5 x16 slots for add-in cards
  • 2+2 2000W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

NVIDIA MGX™ Arm Server - NVIDIA Grace™ CPU Superchip - 2U DP 4x PCIe Gen5 GPUs

Processor

Superchip NVIDIA Grace™ CPU Superchip:
- 2x NVIDIA Grace™ CPUs
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 500W (CPU + memory)
GPU Support Up to 4x Gen5 GPU

Memory

Memory Up to 960GB of LPDDR5X memory with ECC
Memory bandwidth up to 1TB/s

On-board

System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video Integrated in Aspeed® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

PCIe Cable x 6:
- 2x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 1x FHFL x16 (Gen5 x16), from CPU_0
- 2x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1x FHFL x16 (Gen5 x16), from CPU_1

Drive Bays



Storage Front hot-swap:
2x 2.5" Gen5 NVMe
 - (NVMe from CPU_0)
M.2 Internal M.2:
2x M.2 (2242/2260/2280/22110), PCIe Gen5 x4, from CPU_1

Input/Output

Front I/O
 I/O board - CFPX040:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
1x MLAN port
1x Power button with LED
1x ID button with LED
1x Reset button
1x Storage activity LED
1x System status LED

Rear I/O
 N/A
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4

LAN Front:
1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

Cooling

System Fans 4x 80x80x80mm (15,000rpm)

Power

Power Supply 2+2 2000W redundant power supply
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.42" (87mm)
Width 17.24" (438mm)
Depth 35.43" (900mm)
