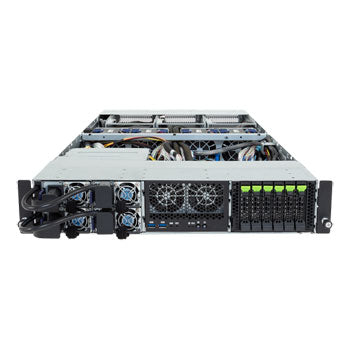

Gigabyte XV23-ZX0-AAJ1 2U GPU Server

SKU: AH-GPU206-GA01

Featured Product Image

Key Features:

  • Optimized for NVIDIA OVX™ L40S Server with 4 GPUs configuration
  • NVIDIA MGX™ modular server design
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Intel® X550-AT2
  • 6x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 3x M.2 slots with PCIe Gen3 x2 and x1 interface
  • 4x FHFL PCIe Gen5 x16 slots for GPUs
  • 3x FHFL PCIe Gen5 x16 slots
  • 4x 2000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

NVIDIA MGX™ Server - AMD EPYC™ 9005/9004 - 2U DP NVIDIA OVX™ 4x PCIe Gen5 GPUs

Processor

CPU Quantity Dual processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9005/9004 series processors
GPU Support Up to 4x Dual-slot Gen5 GPU

Memory

Memory Type DDR5 memory supported
Memory Speed AMD EPYC™ 9005: RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Memory Slots 24

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in Aspeed® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

PCIe Cable x 7:
- 2x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 2x FHFL x16 (Gen5 x16), from CPU_0
- 1x FHFL x16 (Gen5 x16), from CPU_1

Drive Bays

Storage

Front hot-swap:
6x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4x NVMe from CPU_0, 2x NVMe from CPU_1)

Internal M.2:
2x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

Internal M.2 (I/O board - CFPX141):
1x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0

[1] Storage card is required to support SATA and SAS drives.

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x Storage activity LED
1x System status LED

Rear I/O
 I/O board - CFPX141:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
2x RJ45 ports
1x MLAN port
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

LAN

Rear (I/O board - CFPX141):
2x 10Gb/s LAN (1x Intel® X550-AT2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

Cooling

System Fans 4x 80x80x80mm (15,000rpm)

Power

Power Supply 4x 2000W redundant power supply
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.42" (87mm)
Width 17.24" (438mm)
Depth 35.43" (900mm)
