Gigabyte XV24-AX0-AAJ1 2U GPU Server

SKU: AH-GPU208-GX07

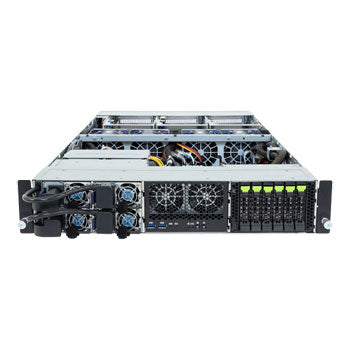

Featured Product Image

Key Features:

  • Supports up to 4x Dual slot Gen5 GPUs
  • NVIDIA MGX™ modular server design
  • Dual Intel® Xeon® 6 Processors, LGA 7529
  • 12-Channel DDR5 RDIMM / MRDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Intel® X550-AT2
  • 6x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 2x M.2 slots with PCIe Gen5 x2 interface
  • 4x FHFL PCIe Gen5 x16 slots for GPUs
  • 3x FHFL PCIe Gen5 x16 slots
  • 2+2 2000W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

NVIDIA MGX™ Server - Intel® Xeon® 6 Processors - 2U DP 4x PCIe Gen5 GPUs

Processor

CPU Quantity

Dual processor, TDP up to 500W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
CPU Socket Socket BR (LGA 7529)
CPU Manufacturer Intel®
CPU Supported Intel® Xeon® 6 Processors
- Intel® Xeon® 6900-Series Processors
GPU Support Up to 4 Dual slot Gen5 GPUs

Memory

Memory Type

DDR5 memory supported
12-Channel memory per processor
MRDIMM supported

MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
Memory Speed RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
Memory Slots

24x DIMM slots

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in Aspeed® AST2600
- 1x Mini DP

Expansion Slots

PCI Express PCIe Cable x 7:
- 2x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 2x FHFL x16 (Gen5 x16), from CPU_0
- 1x FHFL x16 (Gen5 x16), from CPU_1
M.2

Internal M.2 (I/O board - CFPX141):
2x M.2 (2280/22110), PCIe Gen5 x2, from CPU_0

Drive Bays

Storage

Front hot-swap:
6x 2.5" Gen5 NVMe/SATA/SAS-4
- (4x NVMe from CPU_0, 2x NVMe from CPU_1)

Storage card is required to support SATA and SAS drives.
RAID Require RAID add-in cards
Onboard VROC key header

Input/Output


Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x Storage activity LED
1x System status LED

Rear I/O
 I/O board - CFPX141:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
2x RJ45 ports
1x MLAN port
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

LAN Rear (I/O board - CFPX141):
2x 10Gb/s LAN (1x Intel® X550-AT2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN

TPM

1x TPM header with SPI interface
Optional TPM2.0 kit: CTM012

1x PRoT connector (only enabled on RoT SKU)

Cooling

System Fans 4x 80x80x80mm (17,500rpm)

Power

Power Supply 2+2 2000W redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87mm)
Width 17.63" (448mm)
Depth 33.46" (850mm)
