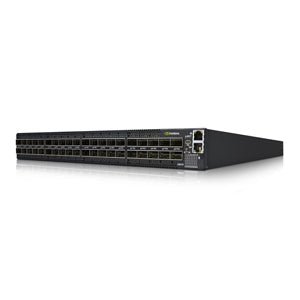

NVIDIA MQM8790-HS2R Quantum HDR InfiniBand Switch

SKU: MQM8790-HS2R

Key Features:

  • 40 x HDR 200Gb/s ports in a 1U switch
  • 16Tb/s aggregate switch throughput
  • Sub-130ns switch latency
  • 1+1 redundant & hot-swappable power
  • N+1 redundant & hot-swappable fans
  • 80 gold+ and energy star certified power supplies

Request a Quote

$15,401.02

Description

NVIDIA MQM8790-HS2R Quantum HDR InfiniBand Switch 40 QSFP56 Ports 2 Power Supplies (AC) Unmanaged Standard Depth C2P Airflow Rail Kit


40-port Non-blocking Managed HDR 200Gb/s InfiniBand Smart Switch

Faster servers, combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with next generation of HDR InfiniBand, high-speed, smart switches.


Built with Quantum InfiniBand switch device, the QM8790 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.


QM8790 is the world's smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements.


Benefits

  • Industry-leading switch platform in performance, power, and density
  • Designed for energy and cost savings
  • Collective communication acceleration
  • Maximizes performance by removing fabric congestions
  • Backward compatible to previous speeds
  • Quick and easy setup and management

Key Features

  • Performance
    • 40 x HDR 200Gb/s ports in a 1U switch
    • 80 x HDR100 100Gb/s ports (using splitter cables)
    • 16Tb/s aggregate switch throughput
    • Sub-130ns switch latency
  • Optimized design
    • 1+1 redundant & hot-swappable power
    • N+1 redundant & hot-swappable fans
    • 80 gold+ and energy star certified power supplies
    • x86 ComEx Broadwell CPU
  • Advanced design
    • Adaptive routing
    • Congestion control
    • Collective offloads (SHARP technology)
    • VL mapping (VL2VL)

Contact us for discount pricing.

Please Note: Lead times are approximately 36 to 52 weeks



Product Details

Switch Family QM8700
Max Ports 40
Connector Type QSFP56
Max Speed HDR
Technology InfiniBand
