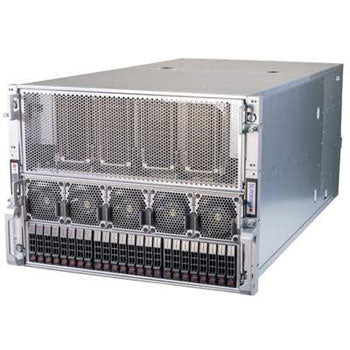

Supermicro 8125GS-TNHR 8U GPU Server

SKU: AH-GPU814-SA01

Key Features:

  • High density 8U system for NVIDIA® HGX™ H100/H200 8-GPU
    Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™
    8x NIC for GPU direct RDMA (1:1 GPU Ratio)
  • 24x DIMM slots DDR5; up to 6TB 4800MT/s ECC LRDIMM/RDIMM
  • Up to 8x PCIe 5.0 x16 LP + 4x PCIe 5.0 x16 FHFL slots
  • Flexible networking options
  • 12x Hot-swap 2.5" NVMe drive bays + 2x hot-swap 2.5" SATA drive bays
    + 4x hot-swap 2.5" NVMe drive bays (optional)
    1x M.2 NVMe for boot drive only
  • 10x heavy duty fans with optimal fan speed control
  • 6x 3000W redundant Titanium level power supplies

Request a Quote

$0.00

Description

Supermicro 8125GS-TNHR 8U GPU Server

Processor

CPU

Dual Processors
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Support CPU TDP 400W

Cores Up to 128C/256T



GPU

Max GPU Count Up to 8x onboard GPUs
Supported GPU
NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect NVIDIA® NVLink™ with NVSwitch™

Memory

Memory Capacity

Max Memory (1DPC): Up to 6TB RDIMM

Memory Type 4800MHz ECC DDR5 RDIMM/LRDIMM
Memory Slots 24x DIMM slots
Error Detection ECC



On-board

Chipset AMD SP5
Network Connectivity 2x 10GbE BaseT with Intel® X550-AT2 (optional)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support



Input/Output

USB 2x USB 3.0 port(s) (2 USB)
Video 1x VGA Port



Expansion Slots

PCI-Express (PCI-E) 8x PCIe 5.0 x16 LP slot(s)
2x PCIe 5.0 x16 FHFL slot(s)



Drives Bays/Storage

Hot-swap Default: Total 18x bays
2x front hot-swap 2.5" SATA drive bays
4x front hot-swap 2.5" NVMe* drive bays
12x front hot-swap 2.5" NVMe drive bays
(*NVMe support may require additional storage controller and/or cables)
M.2

1x M.2 NVMe slot (M-key)



Cooling

Fans 10x heavy duty fans with optimal fan speed control

Power

Power Supply 6x 3000W Redundant Power Supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 8U
Height 14" (355.6mm)
Width 17.6" (447mm)
Depth 17.2" (437mm)
Weight Net Weight: 166 lbs (75.3 kg)
Gross Weight: 225 lbs (102.1 kg)
Color Black Front & Silver Body
