Supermicro X10DGQ Motherboard

SKU: MBD-X10DGQ

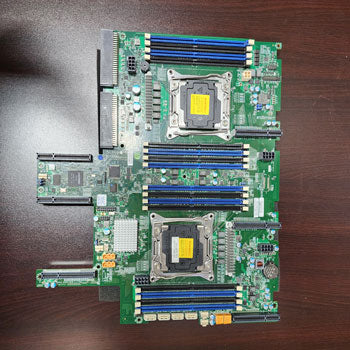

Featured Product Image

Key Features:

  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4-2400MHz; 16 DIMM slots
  • Expansion Slots: 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8
  • Dual port 10GBase-T (Intel® X540) or
    Dual port GbE (Intel® i350) LAN via optional AOM
  • 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 2 USB 3.0 ports (via headers)
  • 30-Day Warranty
  • Condition: Open Box - New
Request a Quote

$1,399.00

Share this product:

Description

Supermicro X10DGQ Motherboard

Product

Manufacturer Part # MBD-X10DGQ
Manufacture Date 2020

Physical Stats

Form Factor Proprietary
Dimensions 13.2" x 14.75" (33.53cm x 37.47cm)

Processor/Cache



CPU

Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
Cores / Cache Up to 22 cores / Up to 55MB cache
QPI
 1 QPI up to 9.6GT/s

System Memory

Memory Capacity Up to 1TB 3DS ECC/non-ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
 RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors

On-Board Devices

Chipset Intel® C612
SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
 Aspeed AST2400 BMC

Input / Output

SATA 10 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (2 headers)
VGA 1 VGA port
TPM 1 TPM Header

Expansion Slots

PCI-Express 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8

System BIOS

BIOS Type
 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Management

 Software IPMI2.0, SPM, SUM, SuperDoctor® 5
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
