Supermicro X9DRE-TF+ Motherboard

SKU: MBD-X9DRE-TF+

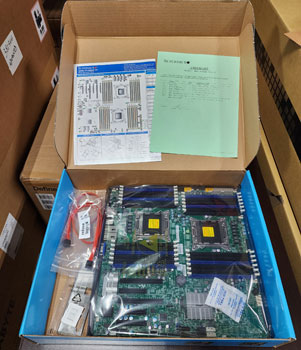

Featured Product Image

Key Features:

  • Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family
  • Intel® C602J chipset; QPI up to 8.0GT/s
  • Up to 1.5TB ECC DDR3, up to 1866MHz; 24 DIMM slots
  • Expansion slots: 2 x16 PCI-E 3.0 and 4 x8 PCI-E 3.0
  • Intel® X540 Dual port 10GBase-T
  • 4 SATA2 and 2 SATA3 ports
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 8 USB 2.0 ports (4 rear, 2 via header + 2 Type A)
  • 30-Day Warranty through Advanced HPC
  • Condition: Open Box - New
Request a Quote

$149.00

Share this product:

Description

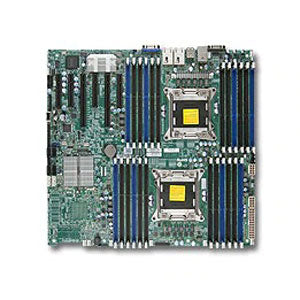

Supermicro X9DRE-TF+ Motherboard

Product

Manufacturer Part # MBD-X9DRE-TF+
Manufacture Date 2014

Physical Stats

Form Factor Enhanced E-ATX
Dimensions 13.68" x 13" (34.7cm x 33cm)

Processor/Cache



CPU

Dual Socket R (LGA 2011)
Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
(up to 135W TDP **)
Note † BIOS version 3.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
Cache Up to 30MB
System Bus QPI up to 8 GT/s

System Memory

Memory Capacity 24 240-pin DDR3 DIMM slots
Up to 1.5TB DDR3 ECC LRDIMM
Up to 768GB DDR3 ECC RDIMM
Up to 128GB DDR3 ECC/non-ECC UDIMM
Memory Type 1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMMs

* Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes
 32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage 1.35V or 1.5V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset Intel® C602 chipset
SATA SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers Intel® X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1 Realtek RTL8201N PHY (dedicated IPMI)
Video G200 (Nuvoton WPCM450 BMC with graphic controller)
Super I/O Nuvoton W83527HG

Input / Output

SATA 2 SATA 3.0 ports (6Gb/s)
4 SATA 2.0 ports (3Gb/s)
LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB 8 USB 2.0 ports total
(4 rear + 2 via header + 2 Type A)
Video 1 VGA port
Serial Port / Header
 2 Fast UART 16550 ports: 1 rear and 1 header
DOM
 1 DOM (Disk on Module) power connector
TPM 1 TPM Header

Expansion Slots

PCI-Express 2 (x16) PCI-E 3.0 slots
4 (x8) PCI-E 3.0 slots

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)

System BIOS

BIOS Type
 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Management

 Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor® III
Watch Dog
NMI
Optional IPMI 1.5 / 2.0
Power Configurations ACPI / APM Power Management
Main Switch Override Mechanism
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
