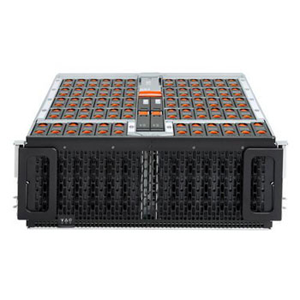

Western Digital Data60 1ES1871 4U 1080TB SATA Hybrid Storage Platform
SKU: RM460J-HE30
Description
4U Data60 Storage Platform Populated with 60 x 18TB SATA 512e SE Drives
System Overview
Drive Interface |
6 Gb/s SATA |
Drive Capacity |
18.0 TB |
Total Capacity | 1080 TB |
Host Interface |
Dual redundant I/O Modules (IOM) 6 Mini-SAS HD ports per IOM |
Management | SCSI Enclosure Services Redfish (out of band, via RJ45) |
Drive Bays
Max Drives |
60 x 3.5” drive bays Up to 24 can be SAS or SATA SSD |
Cooling
Fans |
4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention 1 I/O module fan Dual PSUs with built-in fans |
Power
Power Supply | Dual 1600 W |
Certification | 80 Plus Platinum |
Dimensions
Form Factor | JBOD storage enclosure |
Rack Height | 4U |
Height | 6.89" (175mm) |
Width | 17.61" (447mm) |
Depth | 28.03" (712mm) |
Depth in Rack | 35.04" (Max of 890mm w/ dual CMA—includes 2 SAS cables) |
Weight |
Product without drives: 60lbs (27.3kg) Product with 60 HDDs: 175lbs (79.4kg) |
