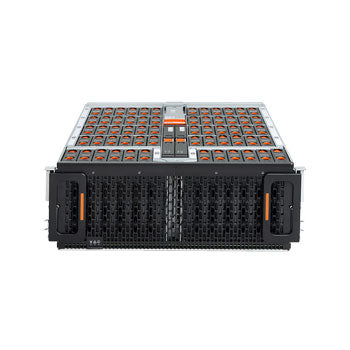

Western Digital Data60 1ES2198 4U 1320TB SAS Hybrid Storage Platform


Key Features:

  • 60 Ultrastar HE 22TB SAS 12Gb/s 3.5 inch 7.2K RPM 512e TCG Hard Drives
  • 1320TB raw capacity in 4U
  • Dual-port SAS for high availability
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty

Request a Quote



4U Data60 Storage Platform Populated with 60 x 22TB SAS 512e TCG Drives

System Overview

Drive Interface
12 Gb/s SAS
Drive Capacity
22 TB
Total Capacity 1320 TB
Host Interface Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Management SCSI Enclosure Services
Redfish (out of band, via RJ45)

Drive Bays

Max Drives
60 x 3.5” drive bays



4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 IO module fan
Dual PSUs with built-in fans


Power Supply Dual redundant 1600 W or 1800 W
Certification 80 Plus Platinum


Form Factor JBOD storage enclosure
Rack Height 4U
Height 6.89" (175mm)
Width 17.61" (447mm)
Depth 28.03" (712mm)
Depth in Rack 35.04" (Max of 890mm w/ dual CMA—includes 2 SAS cables)
Weight Product without drives: 60lbs (27.3kg)
Product with 60 HDDs: 175lbs (79.4kg)
