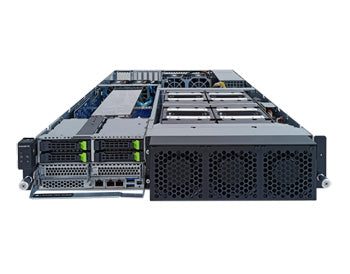

Gigabyte G262-ZO0 2U GPU Server

SKU: AH-GPU204-GA03

Featured Product Image

Key Features:

  • Supports 4x AMD Instinct™ MI250 OAM GPU modules
  • Supports AMD Infinity Fabric Links technology
  • AMD EPYC™ 7003 series processor family
  • Dual processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 16x DIMMs
  • 4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 3x M.2 slots with PCIe Gen4 x4 interface
  • 6x LP PCIe Gen4 x16 slots
  • 1x OCP 3.0 Gen4 x16 mezzanine slot
  • Dual 3000W 80 PLUS Platinum redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 7003 - 2U DP Instinct™ MI250 4-GPU | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64 cores, 128 threads
GPU Support Up to 4x AMD Instinct™ MI250 OAM GPU

Memory

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed Up to 3200/2933 MHz
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Pre-installed with 4x AMD MI250 OAM GPU modules
128GB HBM2e Memory per OAM module
Up to 6x GPU-GPU Infinity Links at 25Gbps

Front side:
1x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

Rear side:
4x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096

1x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function by onboard NCSI_SW
M.2 1x M.2 slot: (Onboard)
M-key
PCIe Gen4 x4, from CPU_0
Supports 2280/22110 cards

2x M.2 slots: (From CMTP072)
M-key
PCIe Gen4 x4, from CPU_1
Support 2242/2260/2280/22110 cards

Drive Bays

Storage
 Front side:
4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, from PEX88096

SAS card is required for SAS devices support

Input/Output

Internal I/O
 1x TPM header
1x Front panel header
Front I/O
 2x USB 3.0
1x mini-DP
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x System status LED
1x HDD access LED
Rear I/O
 N/A
Backplane I/O Speed and bandwidth:
PCIe Gen4 or SATA 6Gb/s
LAN Front side:
2x 1GbE LAN ports (1x Intel® I350-AM2)
1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 2x 60x60x76mm (21,700rpm)
5x 80x80x80mm (17,000rpm)

Power

Power Supply Dual 3000W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.41" (86.8mm)
Width 17.63" (448mm)
Depth 33.46" (850mm)
