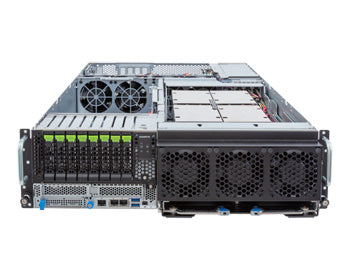

Gigabyte G363-ZR0 3U GPU Server

SKU: AH-GPU308-GA02

Featured Product Image

Key Features:

  • Supports NVIDIA HGX™ H100 with 4x SXM5 GPUs
  • Supports NVIDIA® NVLink® technology
  • Up to 900GB/s GPU to GPU interconnection
  • AMD EPYC™ 9004 Series processors
  • Dual processor, 5nm technology
  • 12-Channel RDIMM DDR5, 24x DIMMs
  • 4x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4x 2.5" Gen5 NVMe hot-swappable bays
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 6x LP PCIe Gen5 x16 slots
  • 2+1 3000W (240V) 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 9004 - 3U DP HGX™ H100 4-GPU | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9004 series Processor
Cores Up to 128-core, 256 threads per processor
GPU Support Up to 4 HGX H100 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type DDR5 memory supported only
Memory Speed Up to 4800 MHz
Memory Slots 24

On-board

Chipset System on Chip
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

Supports NVIDIA HGX™ H100 with 4x SXM5 GPUs

Front side:
1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

Rear side:
4x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144, support RDMA
(Equipped with full-height brackets)

1x OCP 3.0 slot on front side disabled, from CPU_0
M.2 1x M.2 slot (CMTP192):
M-key
PCIe Gen4 x4, from CPU_0
Support 2280/22110 cards

Drive Bays

Storage

Front side:
4x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4x 2.5" Gen5 NVMe hot-swappable bays
(4x NVMe from CPU_0, 4x NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support

Input/Output

Internal I/O
 1x M.2 slot
1x TPM header
1x OCP 3.0 slot
Front I/O
 2x USB 3.2 Gen1
1x Mini-DP
2x RJ45 (Intel I350)
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x System status LED
1x HDD access LED
Rear I/O
 2x RJ45 (Broadcom BCM57416)
1x MLAN (optional)
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Front side:
2x 1Gb/s LAN ports (1x Intel® I350-AM2)
Support NCSI function (by switch setting)

1x 10/100/1000 management LAN

Rear side:
2x 10Gb/s BASE-T LAN ports (1x Broadcom® BCM57416)
Support NCSI function (by switch setting)

1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 7x 80x80x80mm (17,000rpm)

Power

Power Supply 2+1 3000W (240V) redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 3U
Height 5.11" (130mm)
Width 17.63" (448mm)
Depth 31.49" (800mm)
